Product code:11-00-11

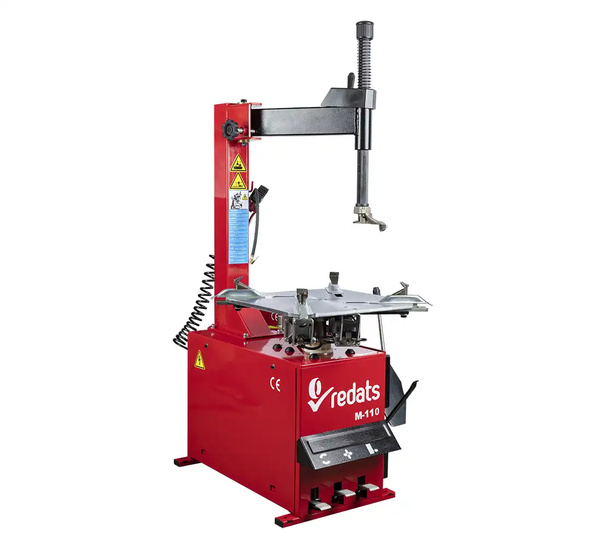

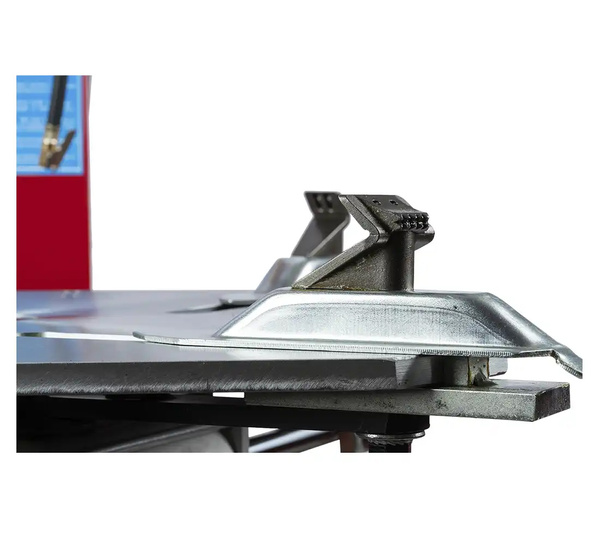

Tyre changer REDATS M-110

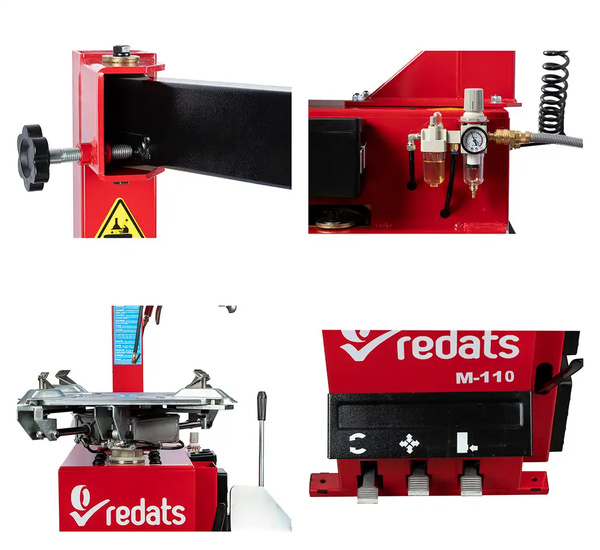

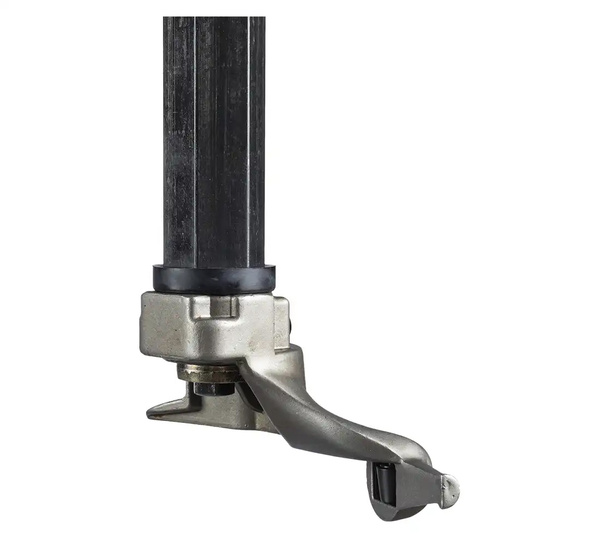

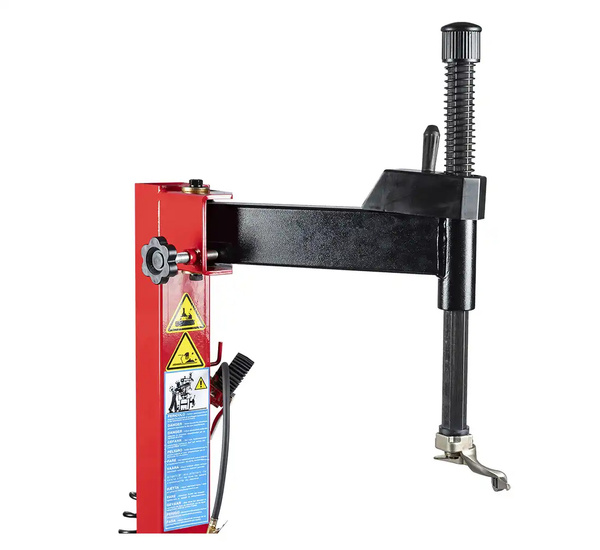

- Semi-automatic machine with manually adjustable arm to the side and counter-rotating screw. Mounting head vertically adjustable and lockable by lever with eccentric mechanism.
Many uses
With this tyre changer you get a more convenient work both with passenger and commercial vehicle wheels.
Trouble-free use
While creating this tyre changer we used top quality components only. You don't have to be concerned about downtimes or machine's breaking down in the middle of a season.
See what you can get!
Along with the tyre changer you will get:
- head and jaws protector
- tyre lever 50 cm
- air inflating gun with a manometer
- air preparation unit and oil lubricator
Easier work
This machine stands out from the crowd due to its easy use. Just use it for one-two times to be perfectly accustomed to it!
Expert's review:
Artur: Tyre changer works with rims to 19"
Ask a question
Compare models
Tyre changer REDATS M-110500,45 €
Description
Semi-automatic machine with manually adjustable arm to the side and counter-rotating screw. Mounting head vertically adjustable and lockable by lever with eccentric mechanism.
Type
Type
Typesemi-automatic
Type
Application
Application
Applicationcars and car-derived vans
Application
Power source
Power source
Power source3 phase (400V)
Power source
Runflat/Low profile tyres
Runflat/Low profile tyres
Runflat/Low profile tyresno
Runflat/Low profile tyres

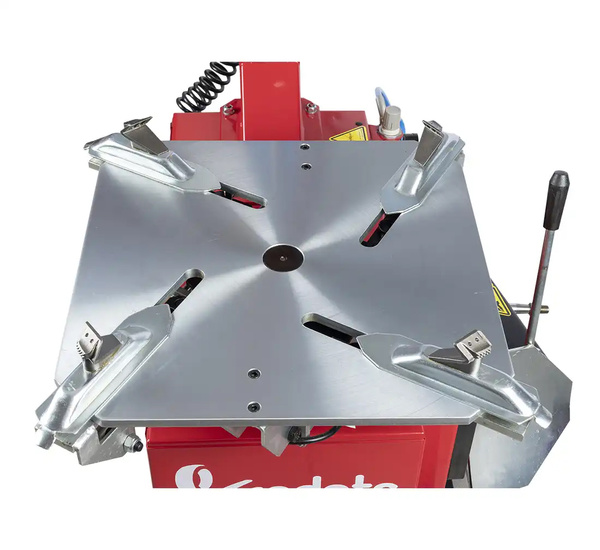

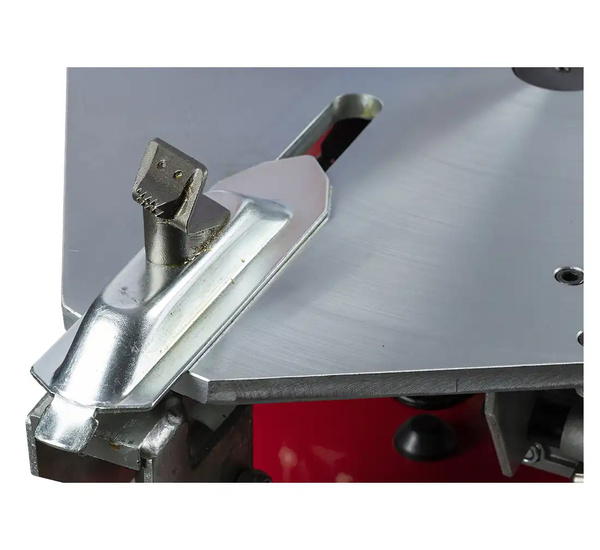

External jaw spacing range
External jaw spacing range
External jaw spacing range10" - 17"
External jaw spacing range
Internal jaw spacing range
Internal jaw spacing range
Internal jaw spacing range12" - 19"
Internal jaw spacing range
Maximum wheel width
Maximum wheel width
Maximum wheel width355 mm
Maximum wheel width
Max. wheel diameter
Max. wheel diameter
Max. wheel diameter1000 mm
Max. wheel diameter
Power
Power
Power0.75 kW
Power
Weight
Weight
Weightca. 200 kg
Weight

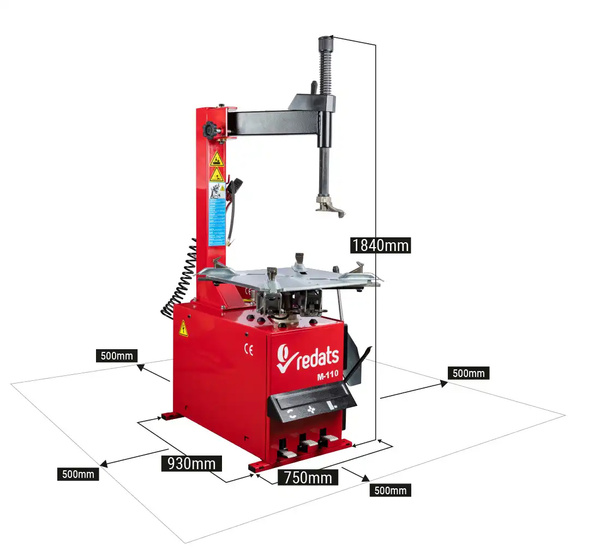

Dimensions (height x depth x width)
Dimensions (height x depth x width)
Dimensions (height x depth x width)184 x 93 x 75 cm
Dimensions (height x depth x width)
Write your opinion
Technical specification
Brand
Symbol
11-00-11
Producer code
5902730103707
Type
semi-automatic
Application
cars and car-derived vans
Power source
3 phase (400V)
Runflat/Low profile tyres
no
External jaw spacing range
10" - 17"
Internal jaw spacing range
12" - 19"
Maximum wheel width
355 mm
Max. wheel diameter
1000 mm
Power
0.75 kW

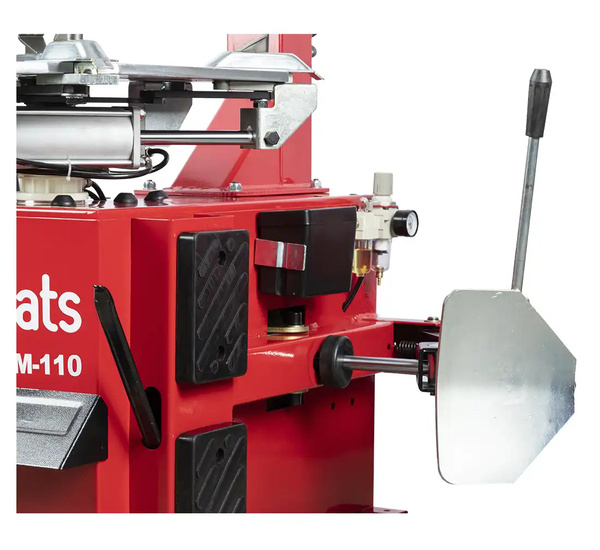

Bead breaker shovel force
2500 kg
Working Pressure
8 - 10 Bar
Noise level
< 75 dB
Turntable max. torque
1078 Nm
Table rotation speed
6 RPM
Blocking of the arm and head
Manual
Standard equipment
Air inflating gun
Oil lubricator + air preparation unit
Tyre lever
Accessories bucket
Weight
ca. 200 kg
Dimensions (height x depth x width)
184 x 93 x 75 cm
Manufacturer
REDATS
Warranty
24 months
Warranty (for companies)
12 months
