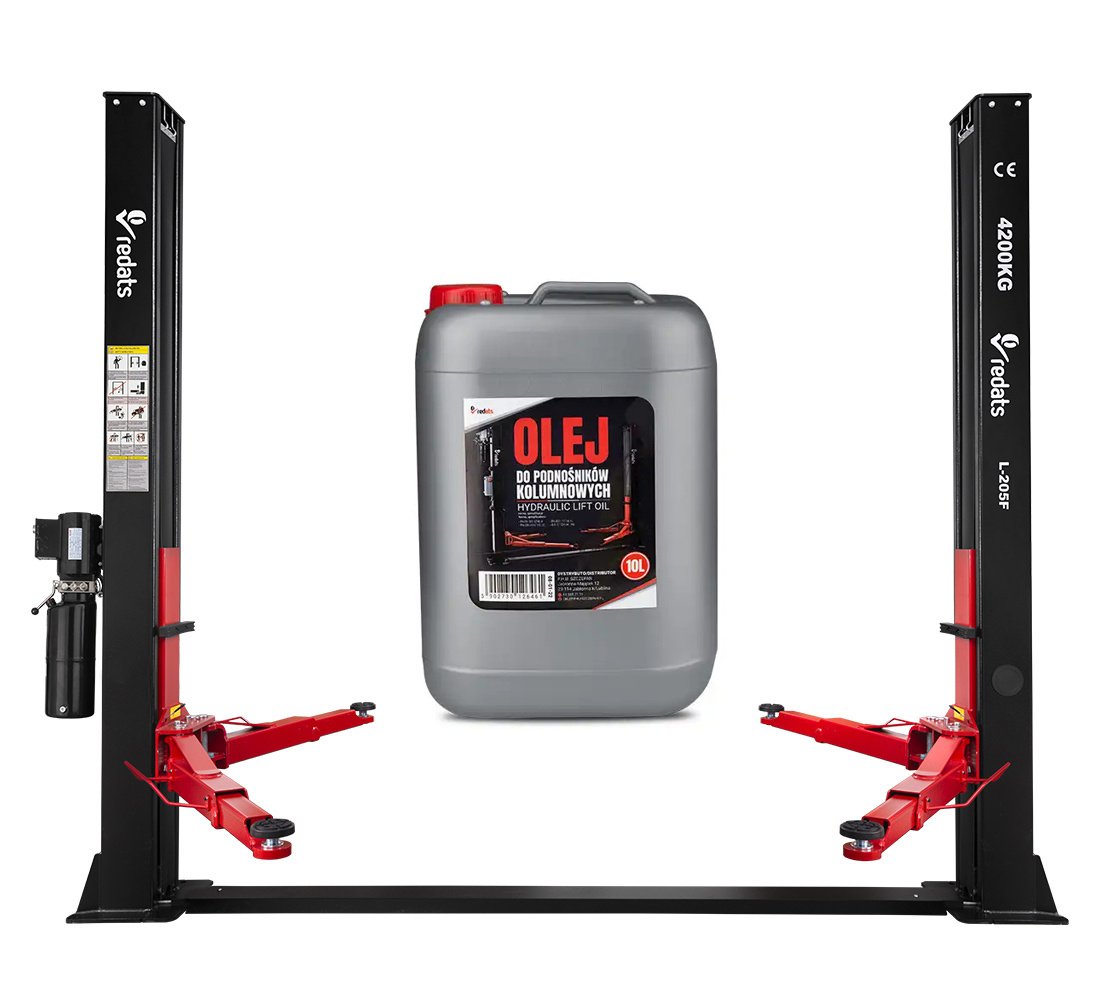

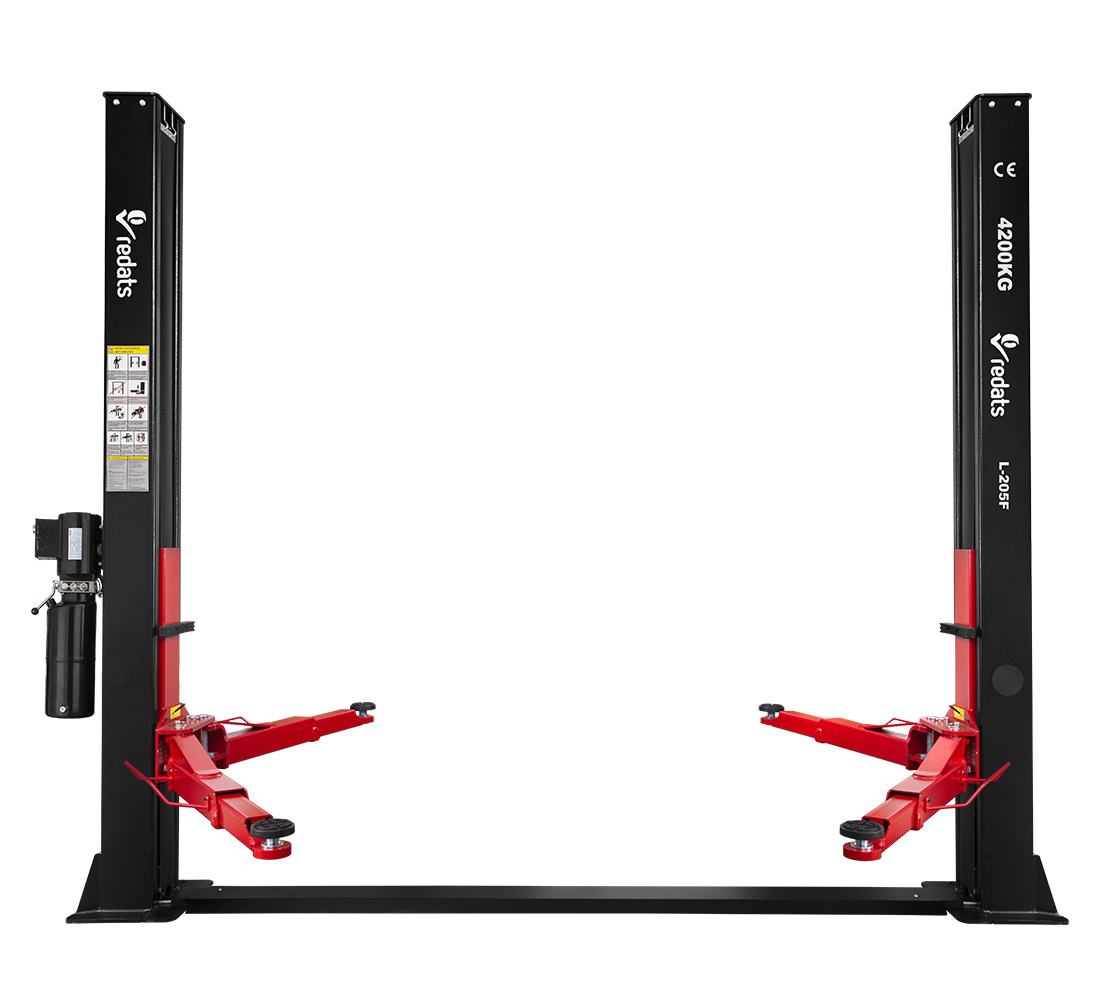

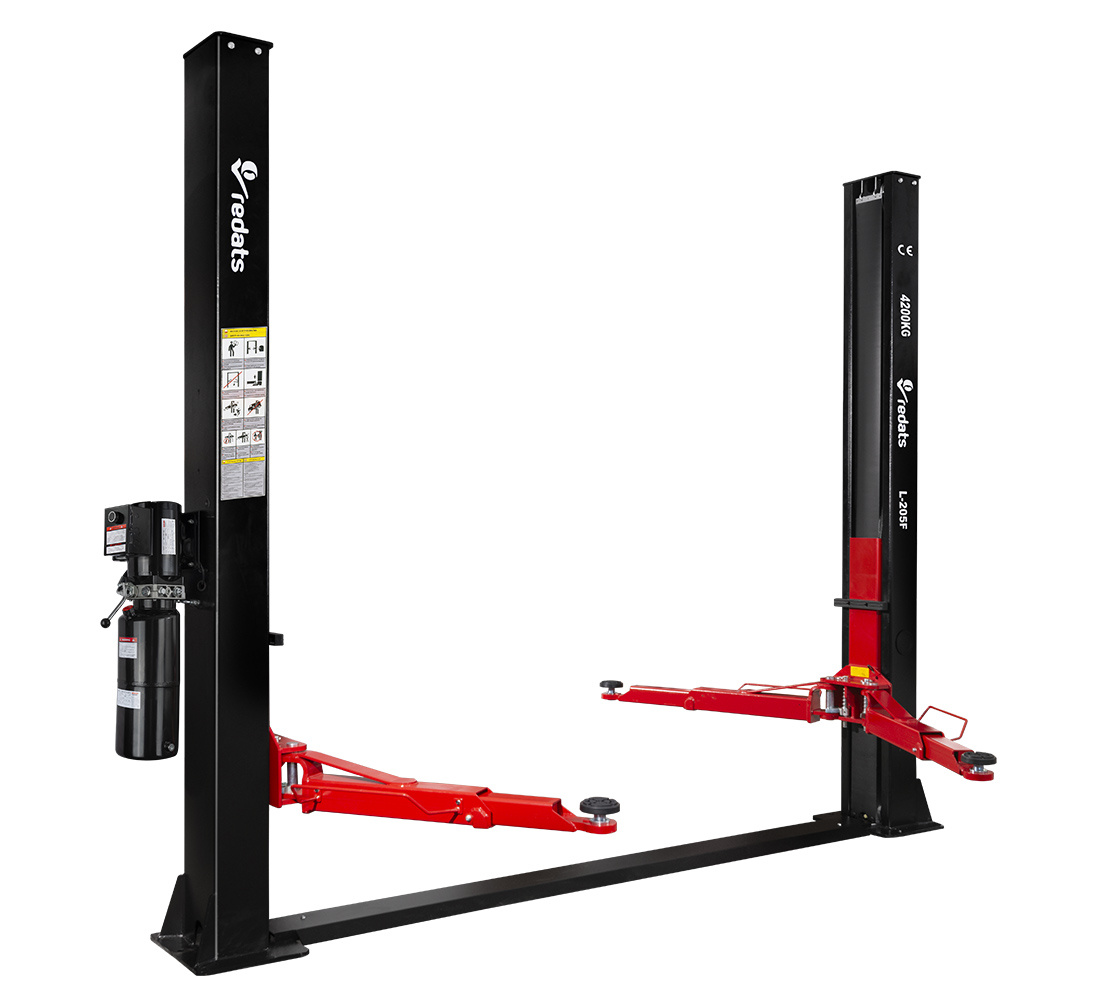

Semi-automatic two post lift 4,2T - REDATS L-205F

What lift is it?

This is a semi-automatic two post lift. One-phase (230V) so it is perfect for those who don’t have 3-phase at their garages. With 4,2 tons of capacity, it is perfect for passenger cars and light delivery vans.

How is it different from the L-200F model?

- We’ve increased the lifting capacity by 200 kg (now it’s 4.2 tons), so you’ll be able to handle an even wider range of vehicles without worrying about overloading.

- You’ll be able to lift a car 10 seconds faster, which means more time for repairs and greater productivity.

- With this lift, you’ll be able to handle cars with a width of 2616 mm, expanding the capabilities of your car services

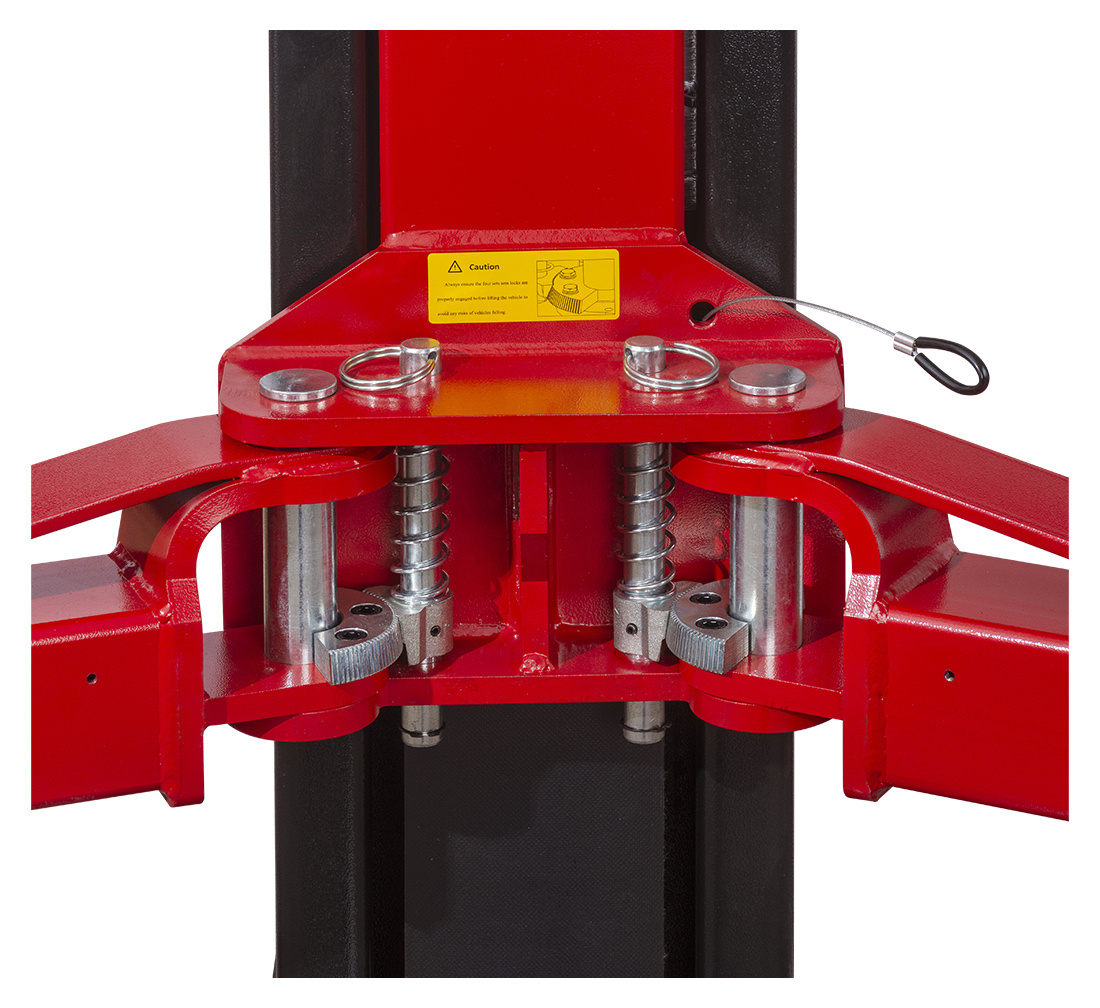

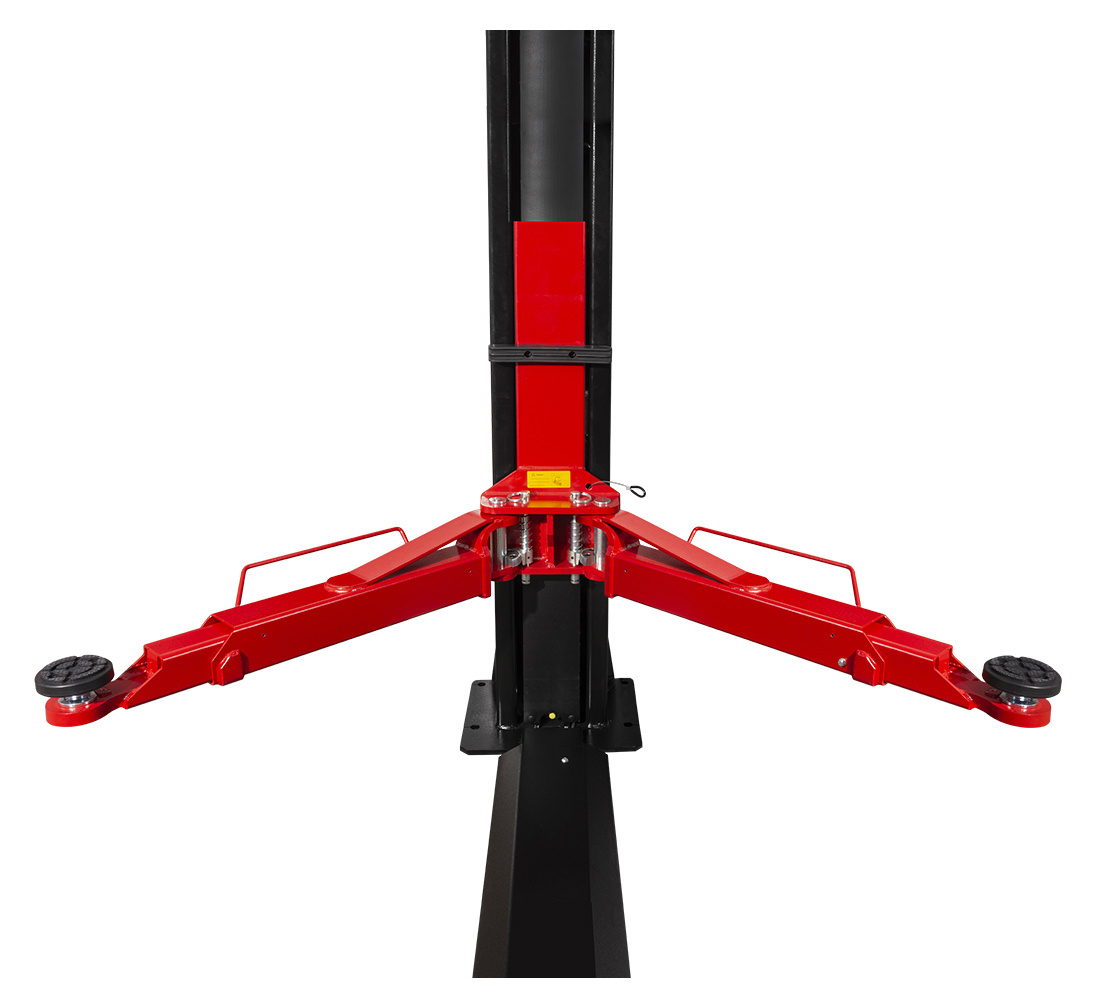

- The symmetrical arms ensure precise positioning of the vehicle, making it easier to carry out repairs.

The machine’s dimensions and lifting height have also changed. You can check all the details below.

This lift will help your clients

• raise cars and delivery vans - 4,2 tons capacity
• work with suspension/unberbody
• work on wide cars - max car width 2616 mm
• feel working comfort even if they are tall - it raises to 1910 mm

REDATS L-205F - most important facts

This lift is a perfect choice for your clients looking for a unit that

• saves time - automatic lock release - no need to run from post to post
• can be powered with 230V
• is able to raise passenger cars and delivery vans - 4,2 tons capacity
• makes suspension or underbody jobs easier
• is able to fit wide cars - max. car width is 2616 mm
• provides working comfort for tall mechanics - it raises up to 1910 mm
• comes with rope covers - this is the part most exposed to damage

What makes it better than L-205?

It comes with a different power source. It is a good choice for your clients who have 230V only.

Any other technical specs you need to know?

• type: semi-automatic

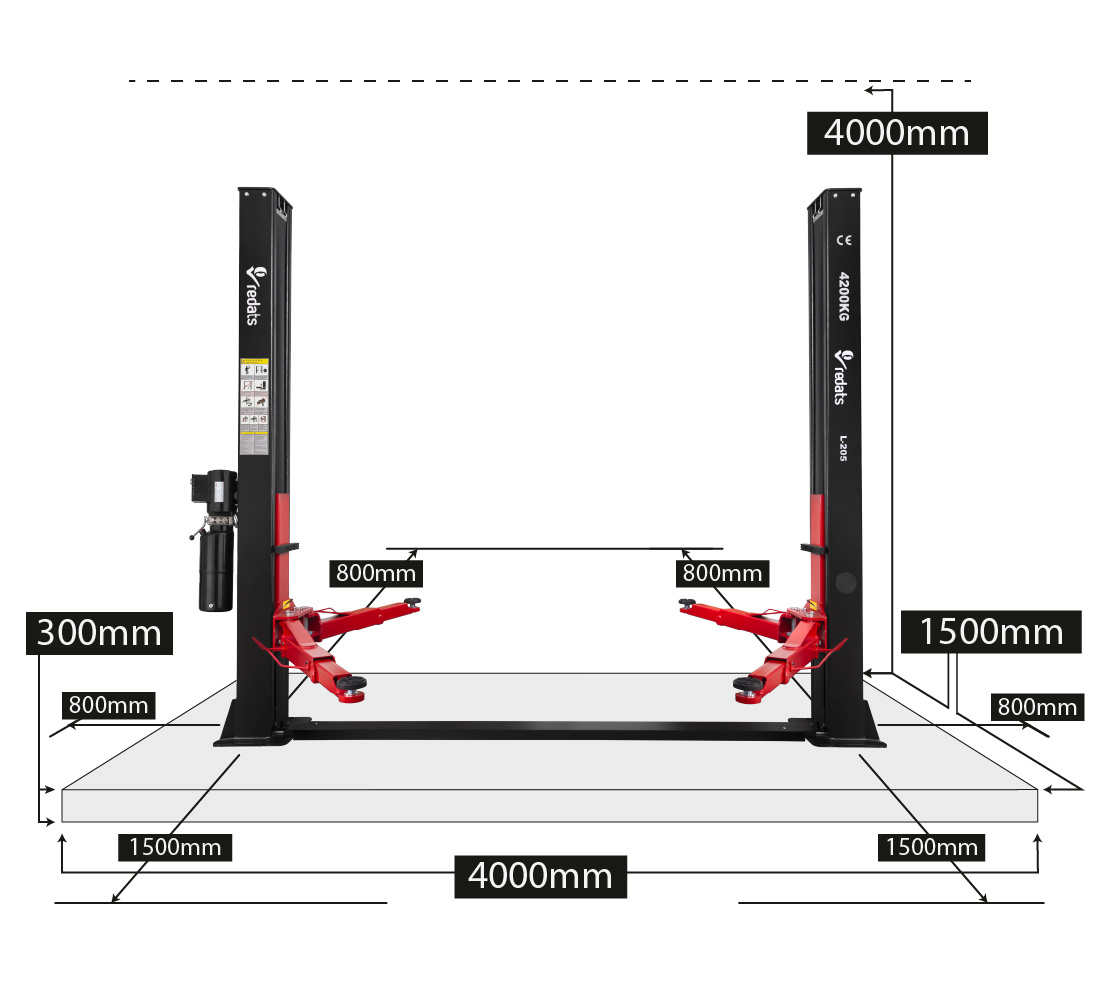

• dimensions 3648 x 2850 mm
• lowering time: 25 seconds
• raising time: 45 seconds
• capacity: 4200 kg (4,2 tons)
• raising height: 110-1910 mm
• max. car width: 2616 mm
• engine output: 2.2 kW

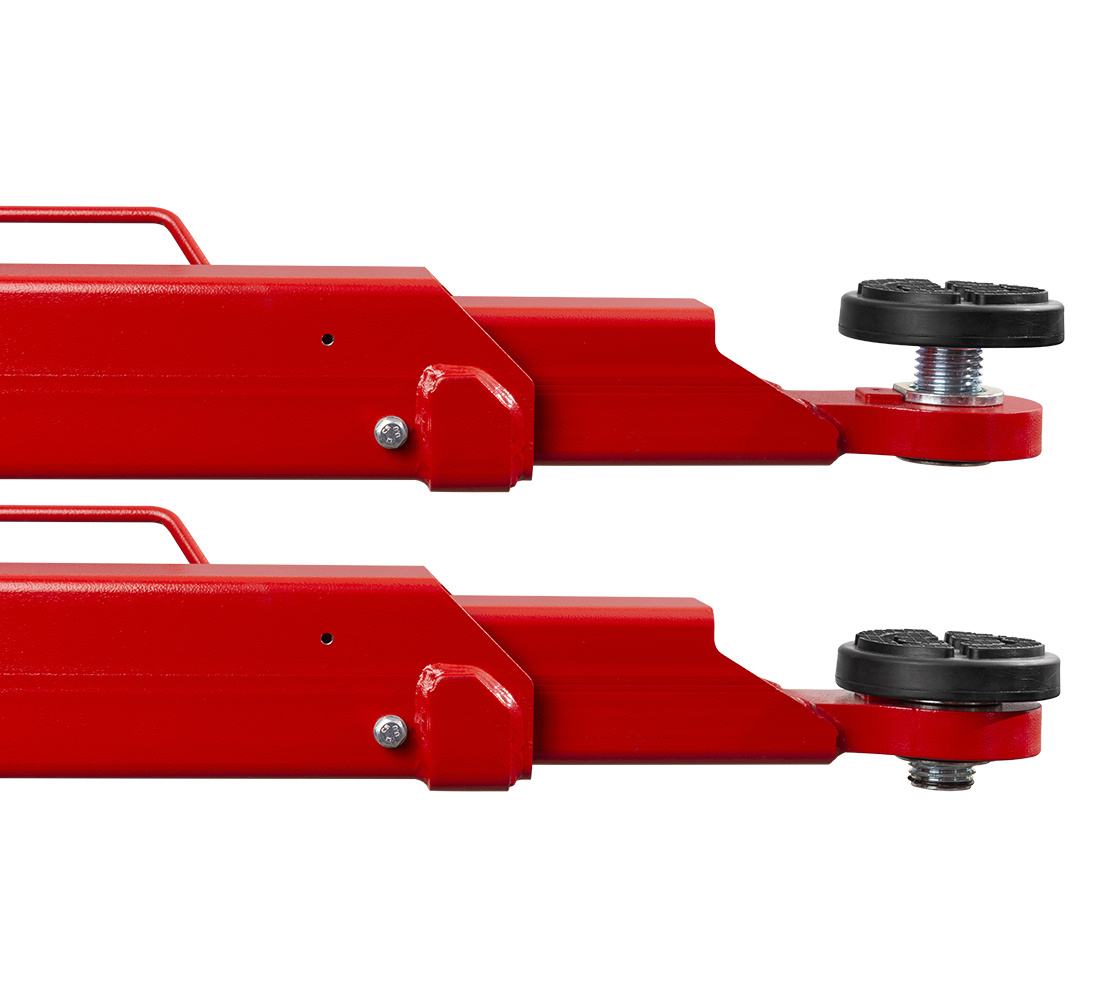

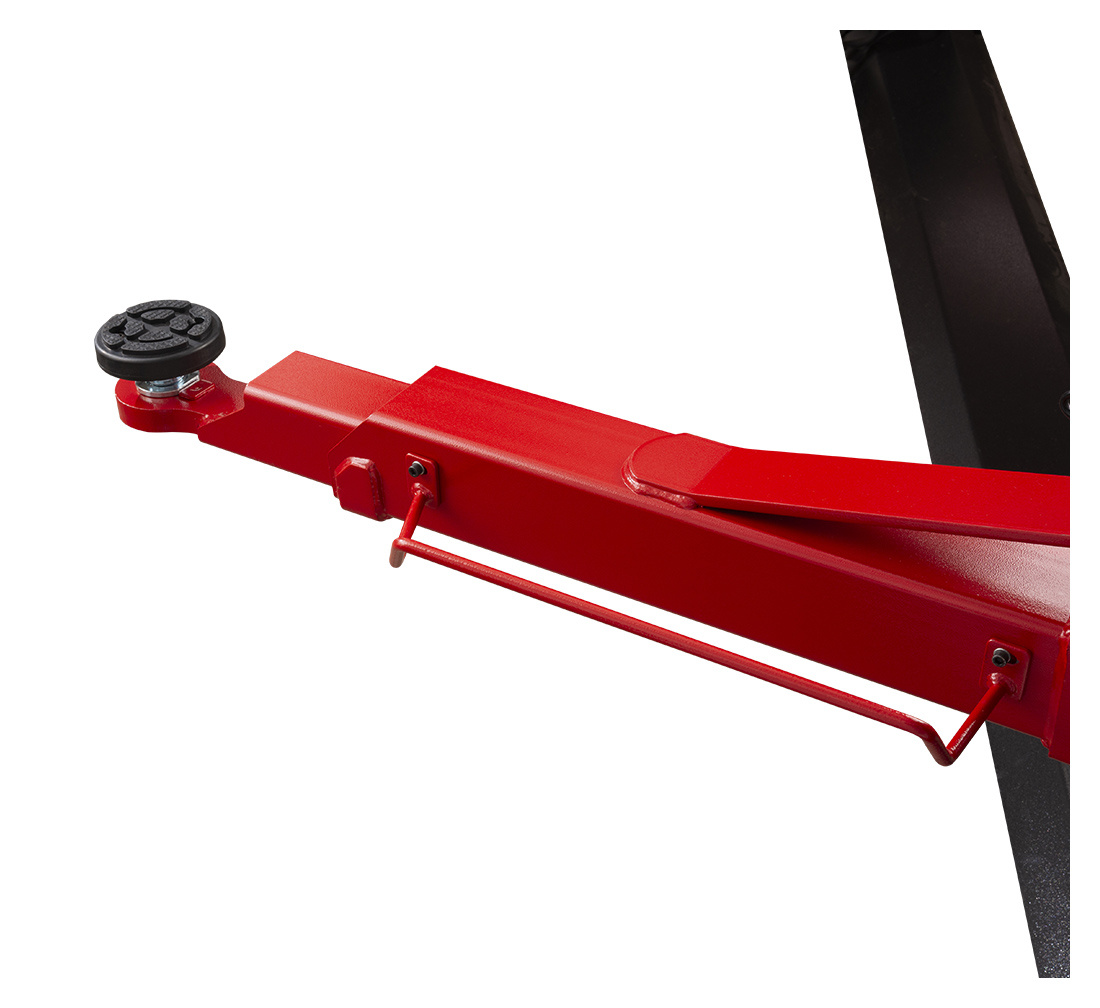

• telescopic arms: YES
• power source: 230V

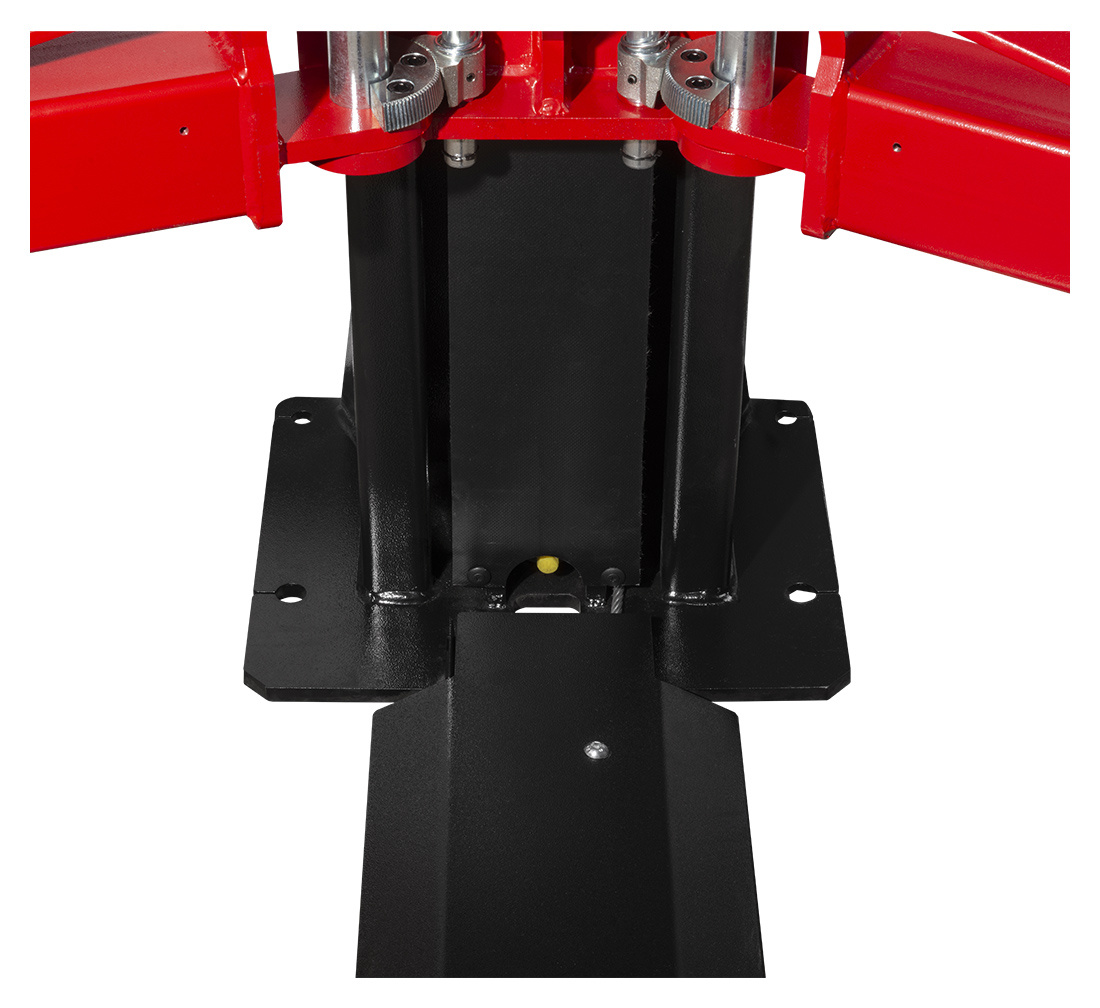

• beam: lower
• floor thickness: 30 cm

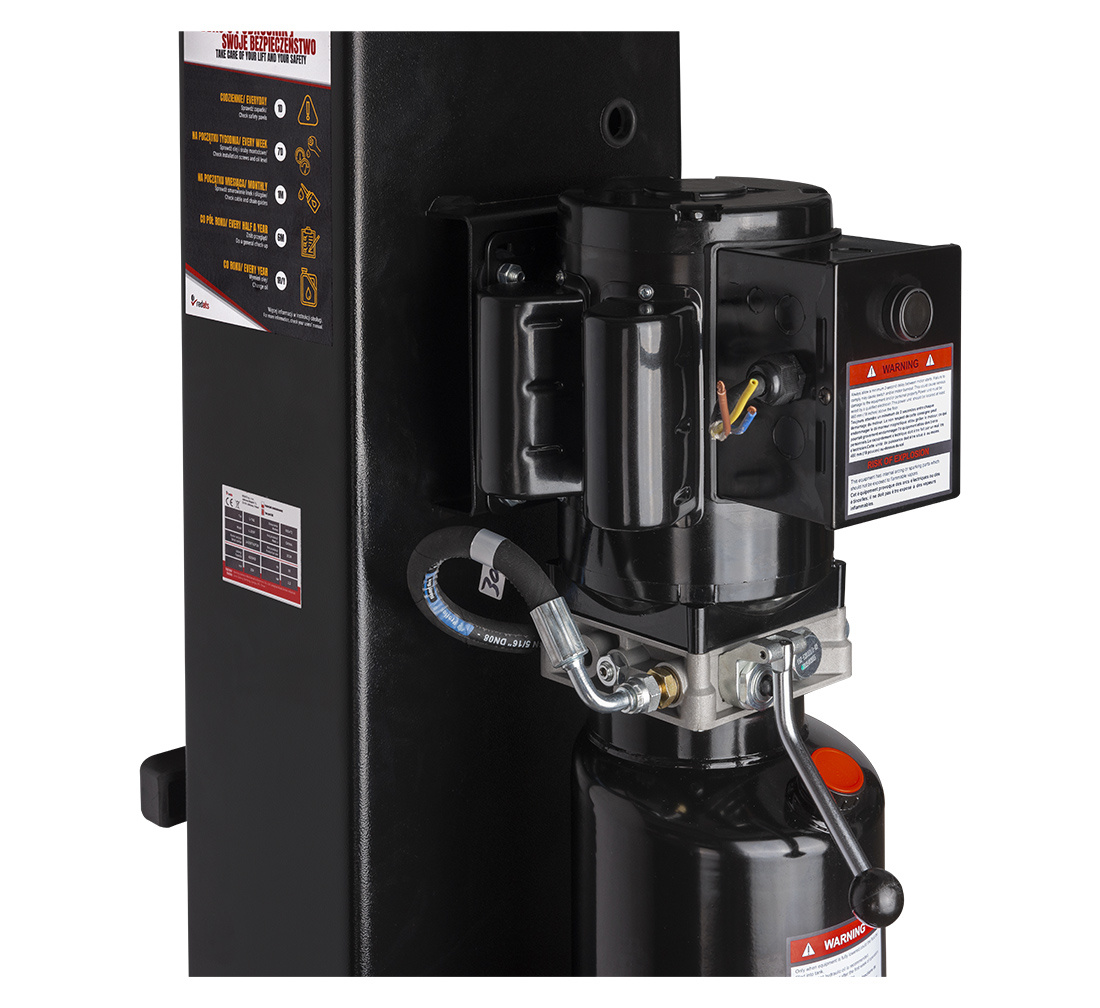

Did you know that a two-post lift can be powered by one-phase (230V)? You won’t need to have a three-phase power at your garage. Simply connect it to a regular socket.

Wide range of use

Thanks to its capacity of 4,2 tons, the lift will be a great choice for both passenger cars and lighter commercial vehicles.

Absolute safety

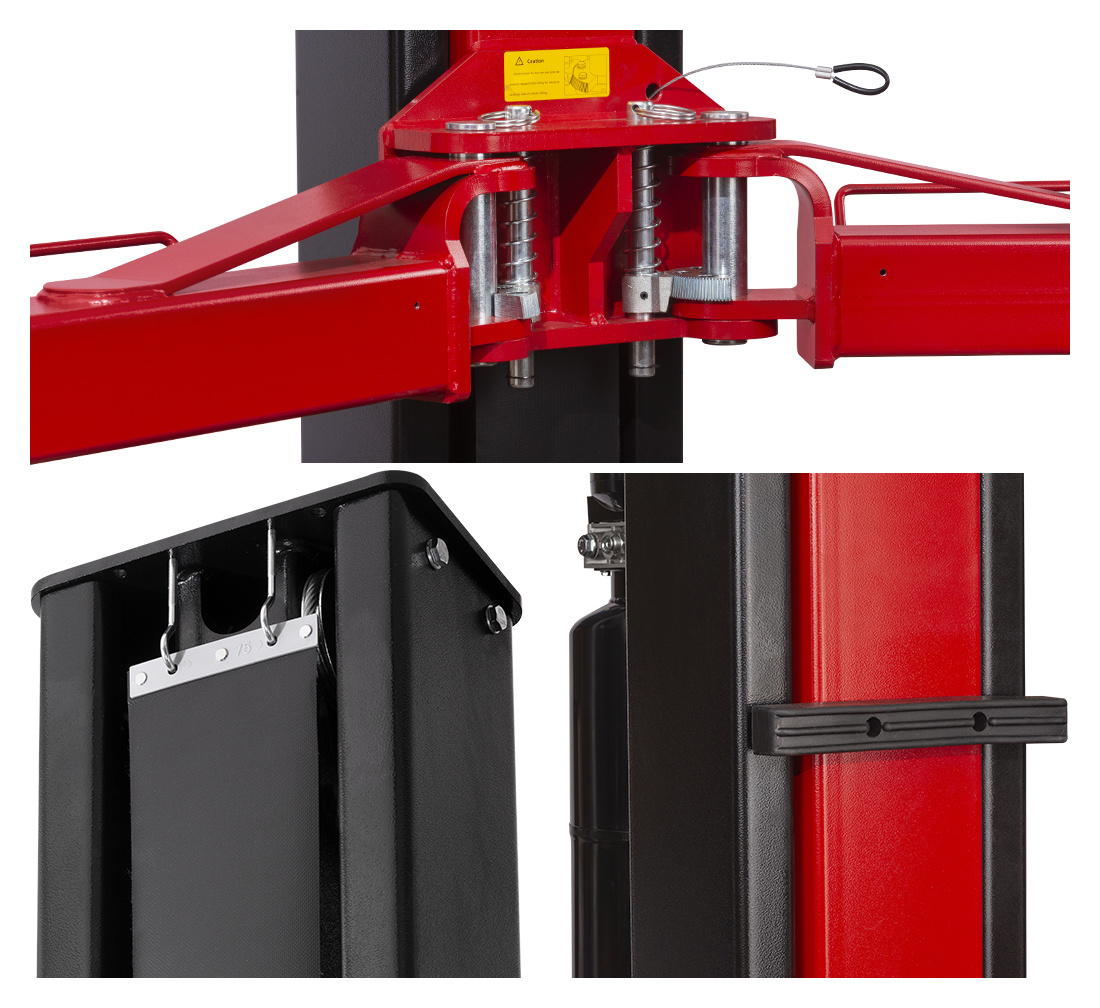

There are some rubber protection elements, so that there is no risk of any scratches on the car’s doors, while they are opened on the lift.

Easy parking

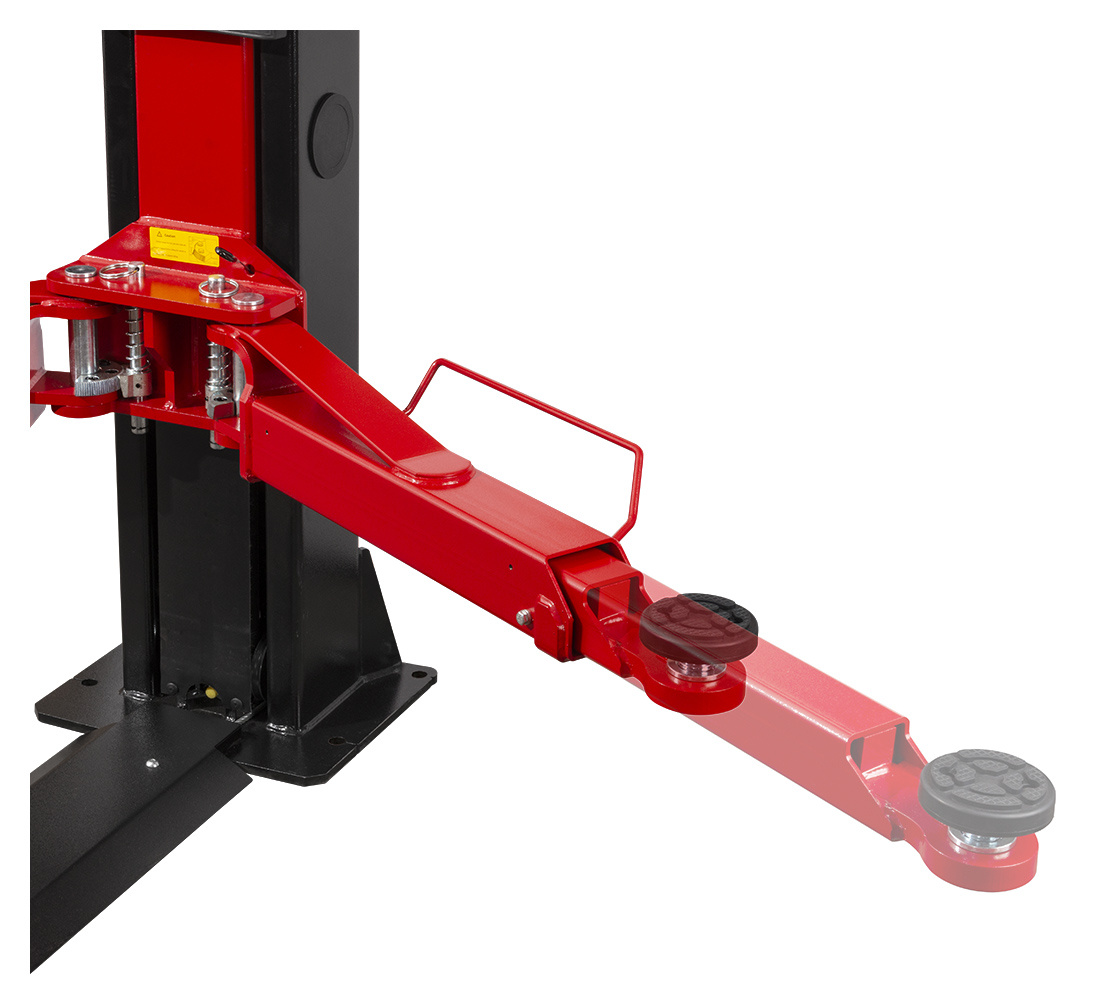

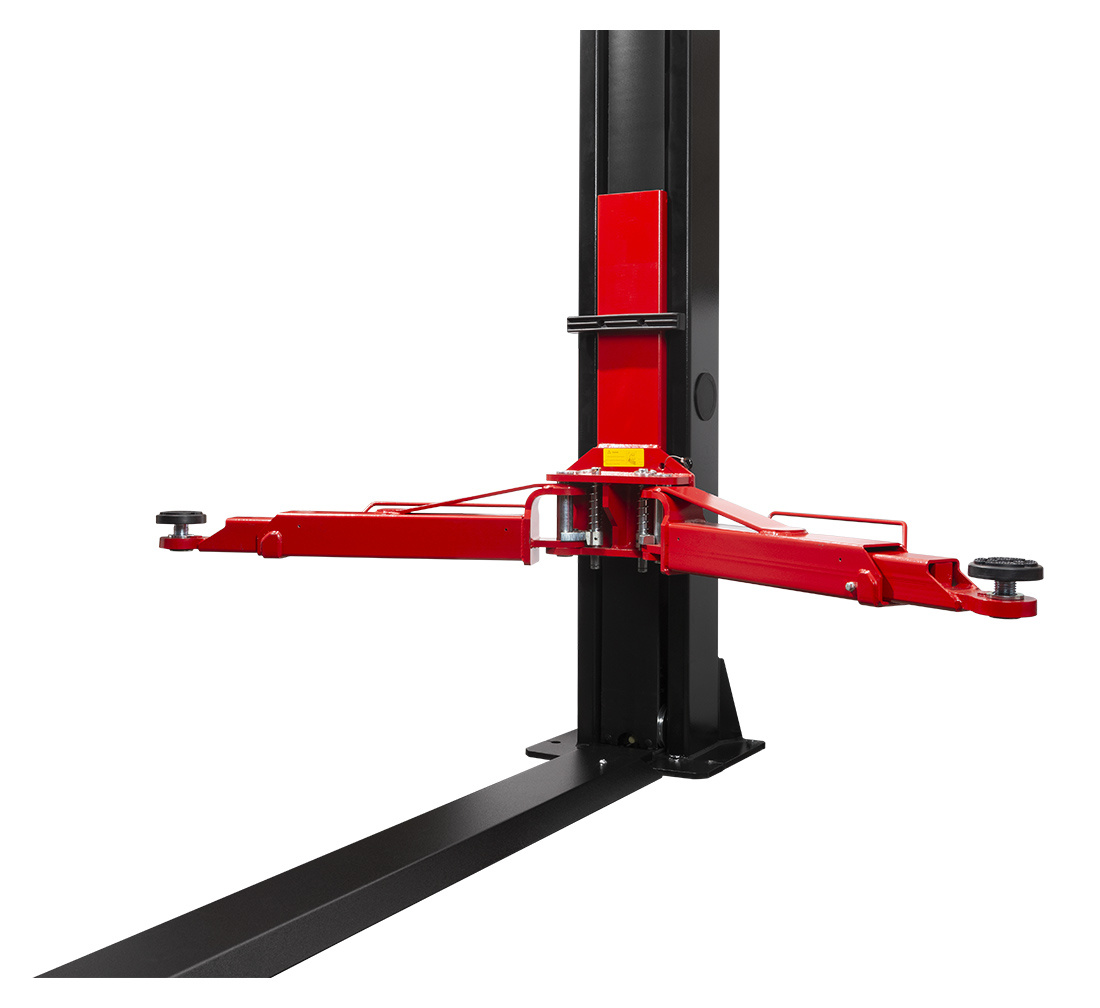

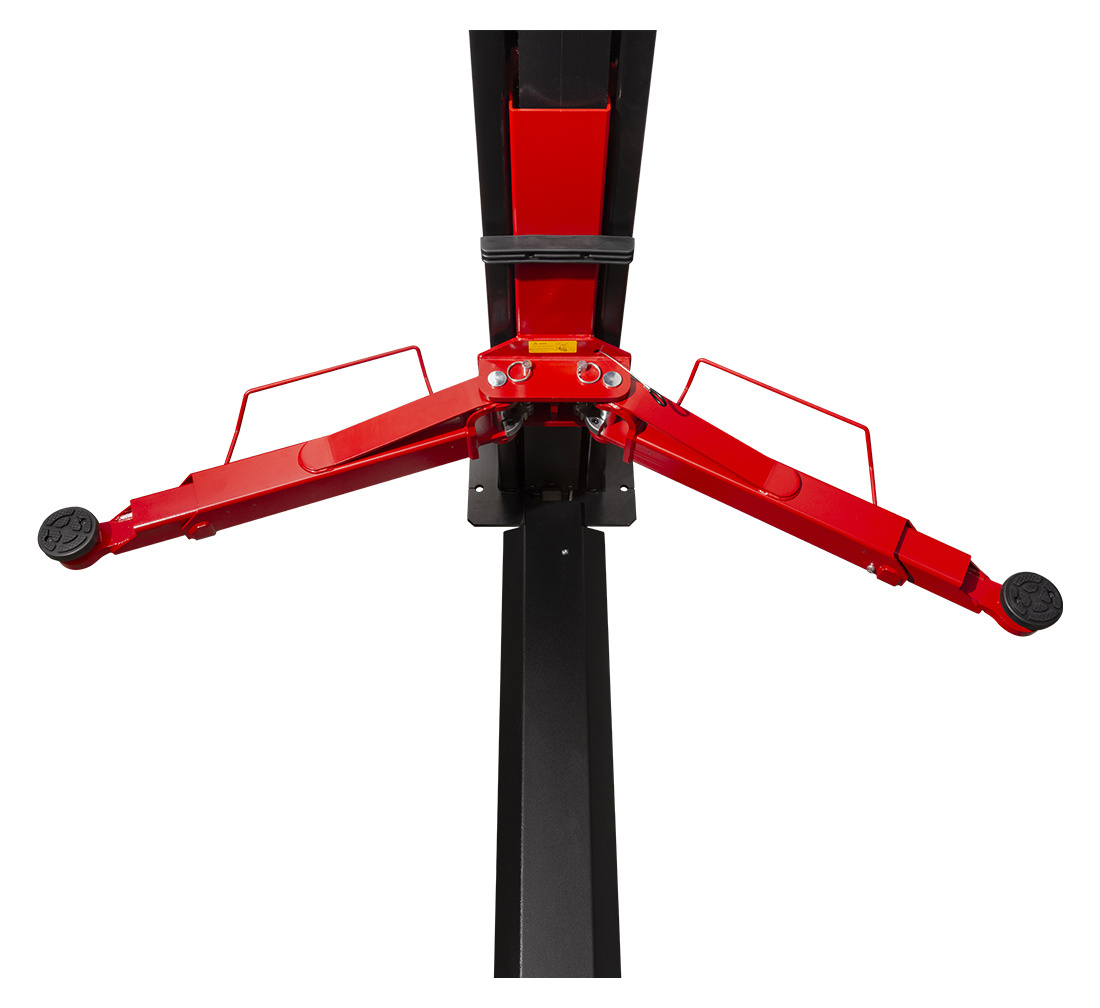

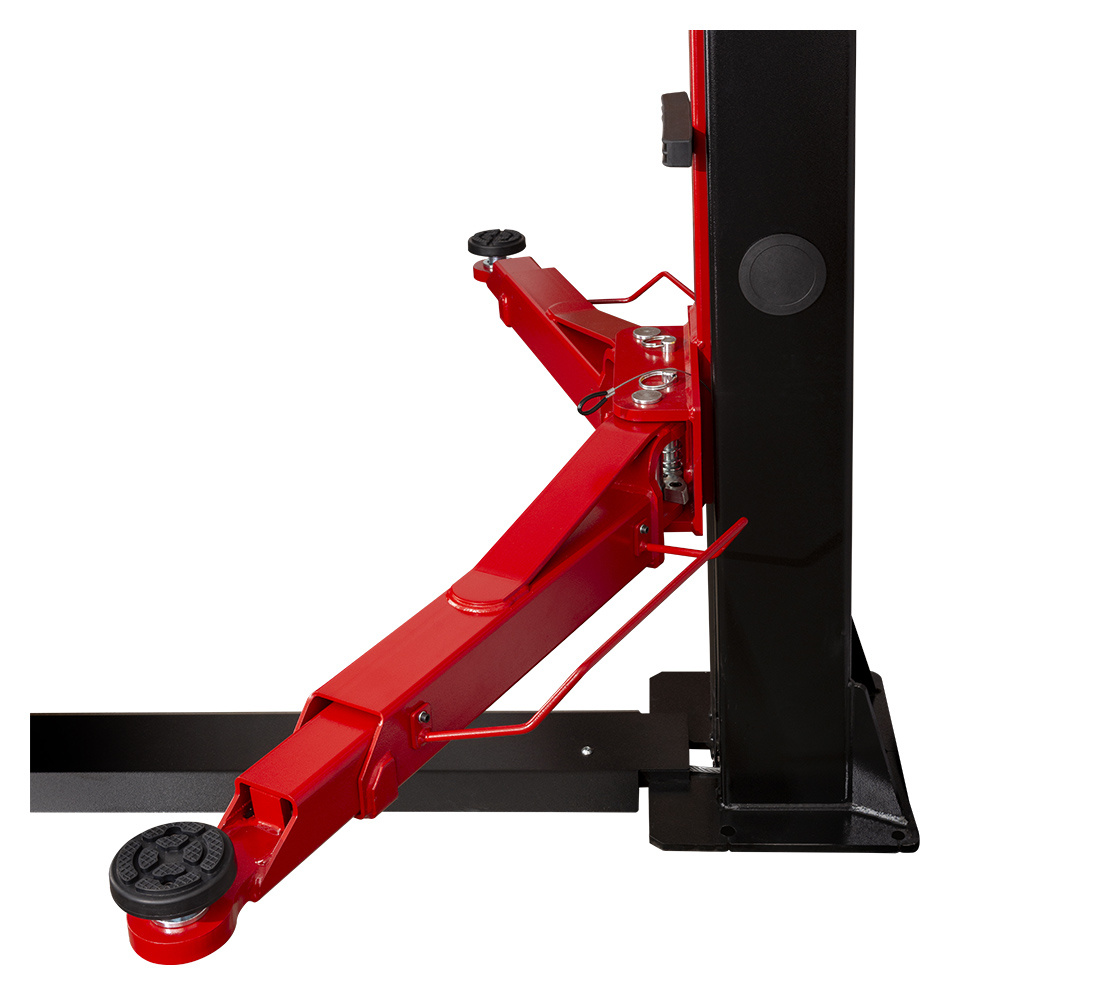

Even with longer cars, it is very easy to drive onto the lift - the arms simply fold to the outside.

Simple work

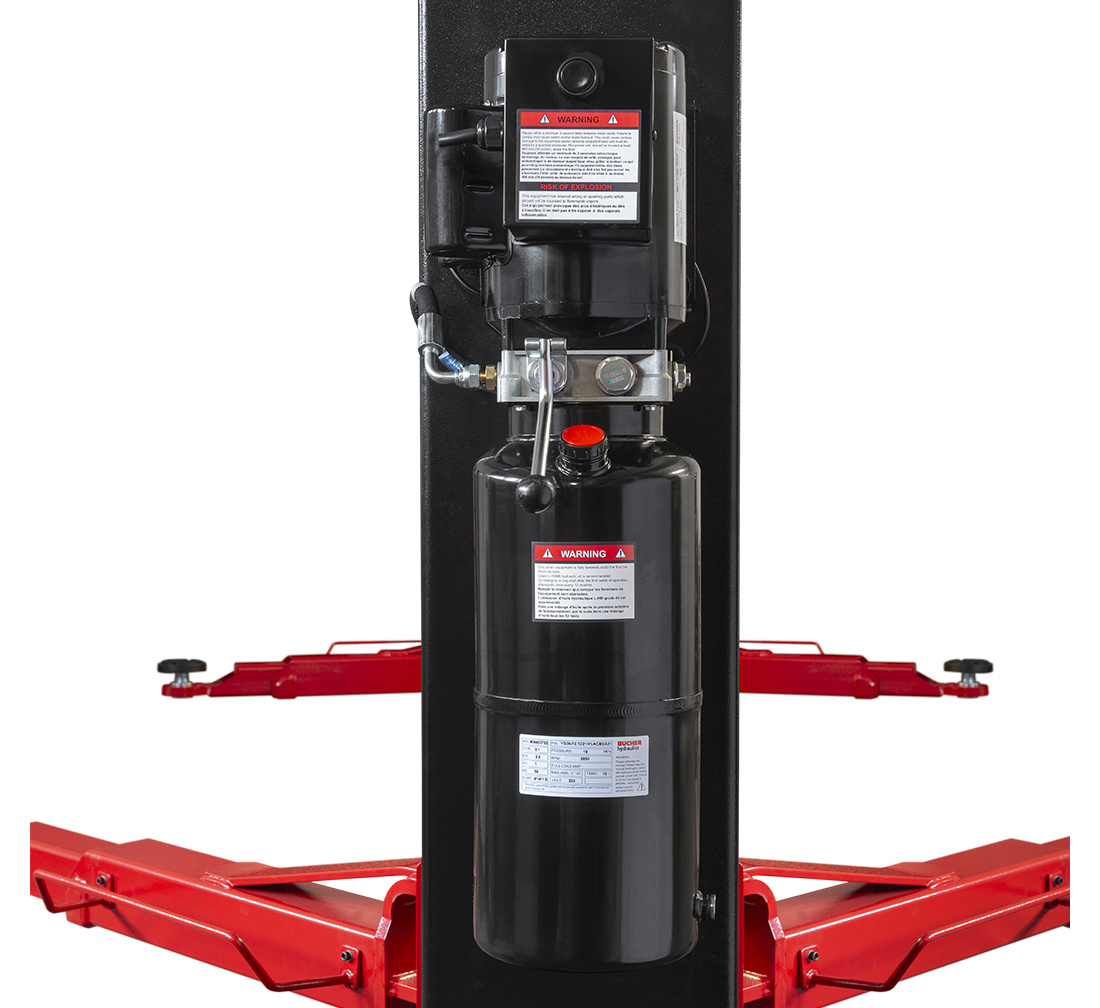

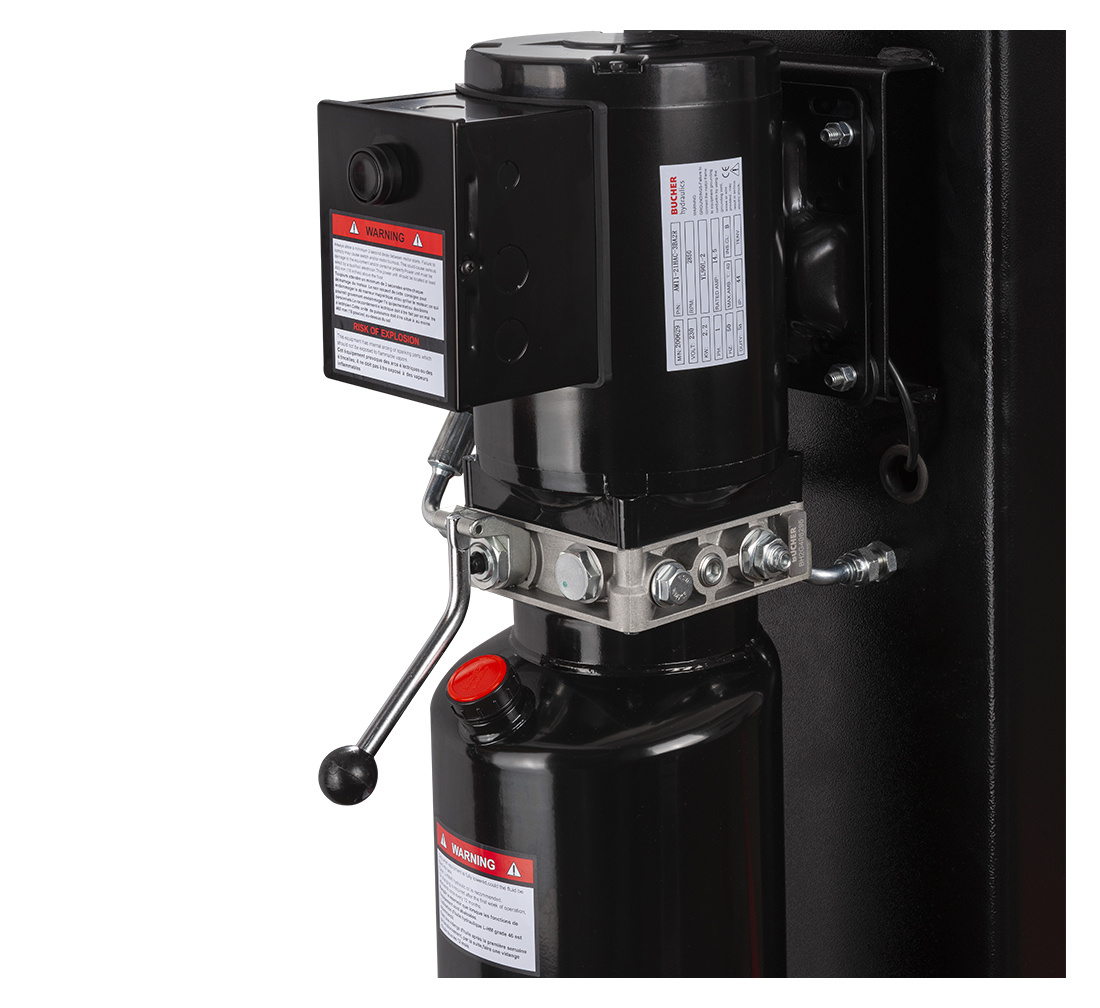

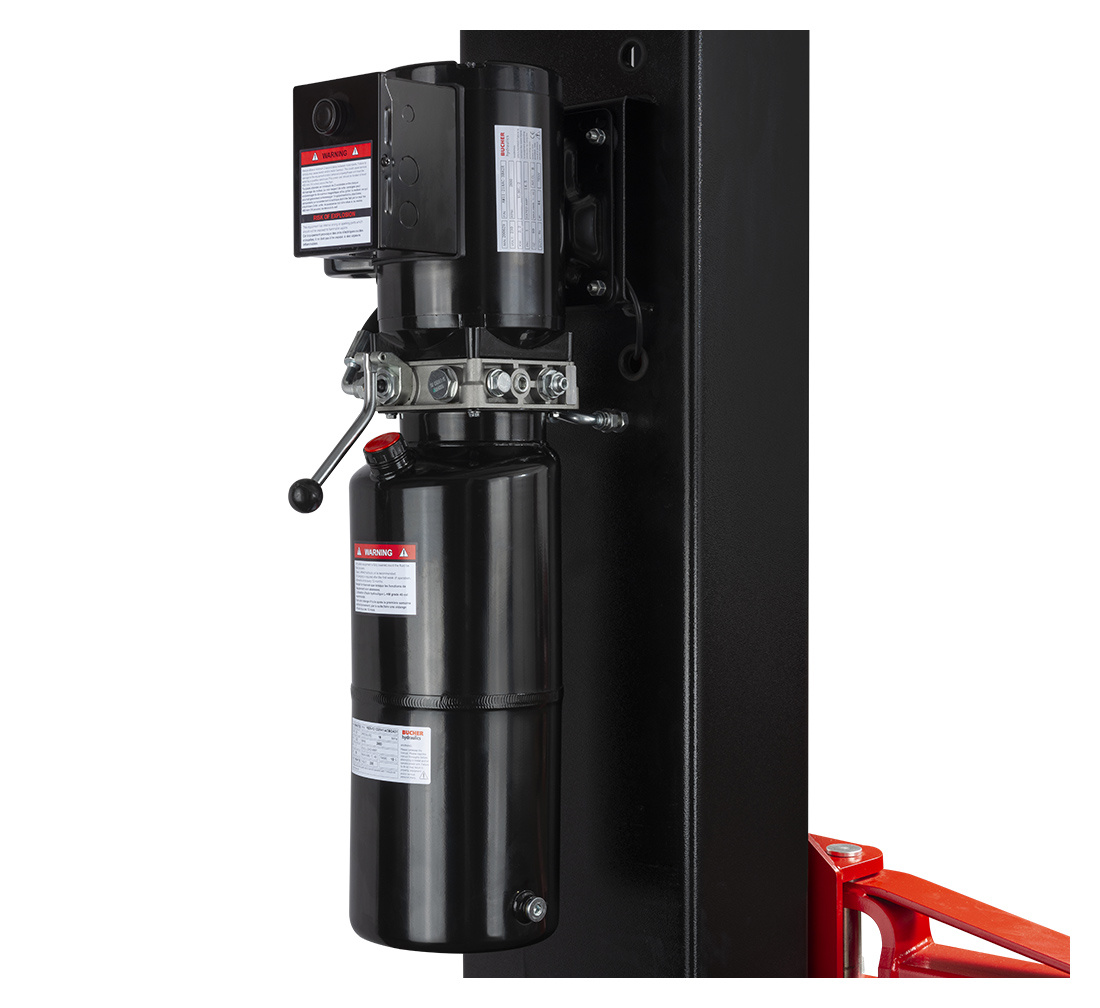

Learning how to set the lift in the desired position is surprisingly easy - simply push the button (lifting) or handle (decreasing) - that’s it!

Reliability for years

While designing this lift we strived to use the best materials available on the market. We manufacture it ourselves, so we know that you can rely on it for many years! Plus to that, we are able to supply most spare parts for the lift - be it electronic or hydraulic.

What cars is it for?

Here’s a list of car types this lift is able to raise:
