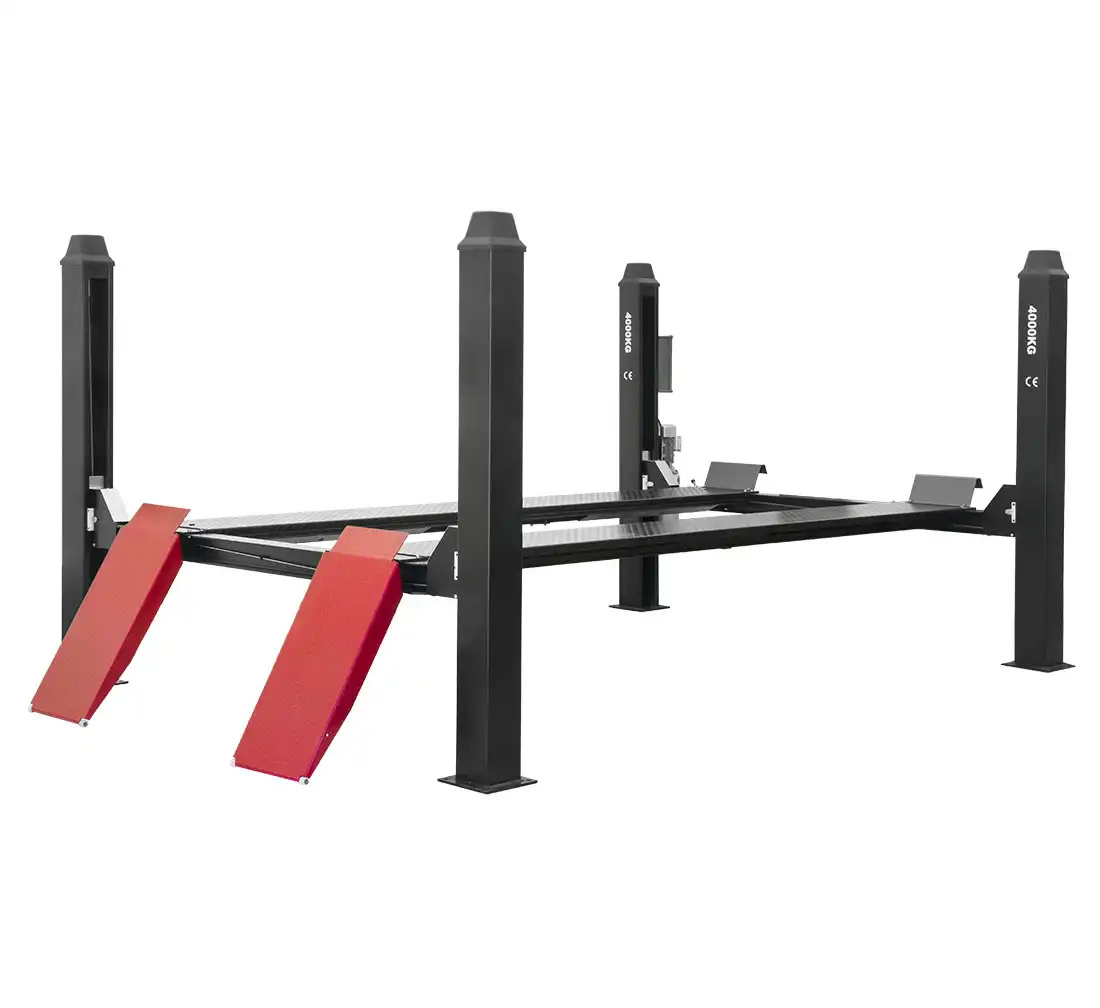

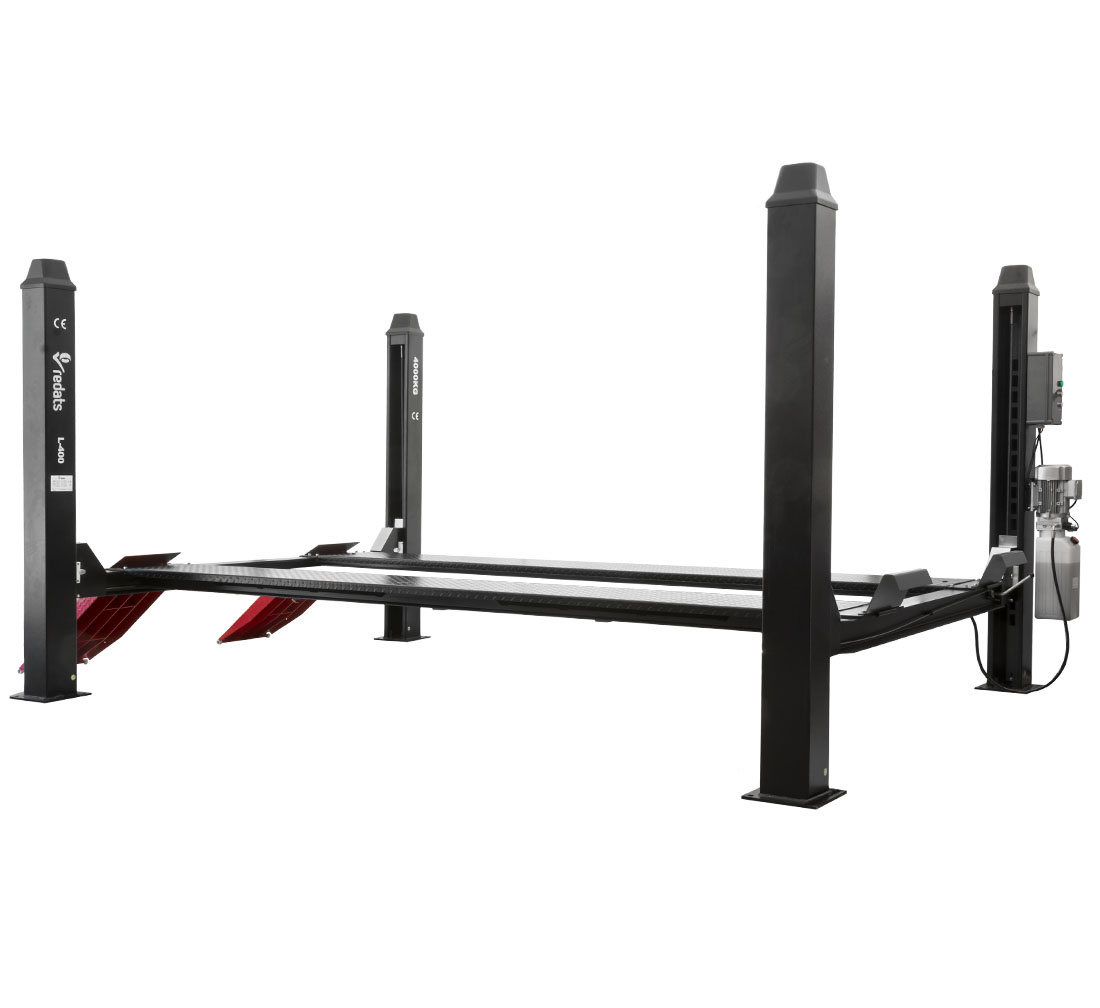

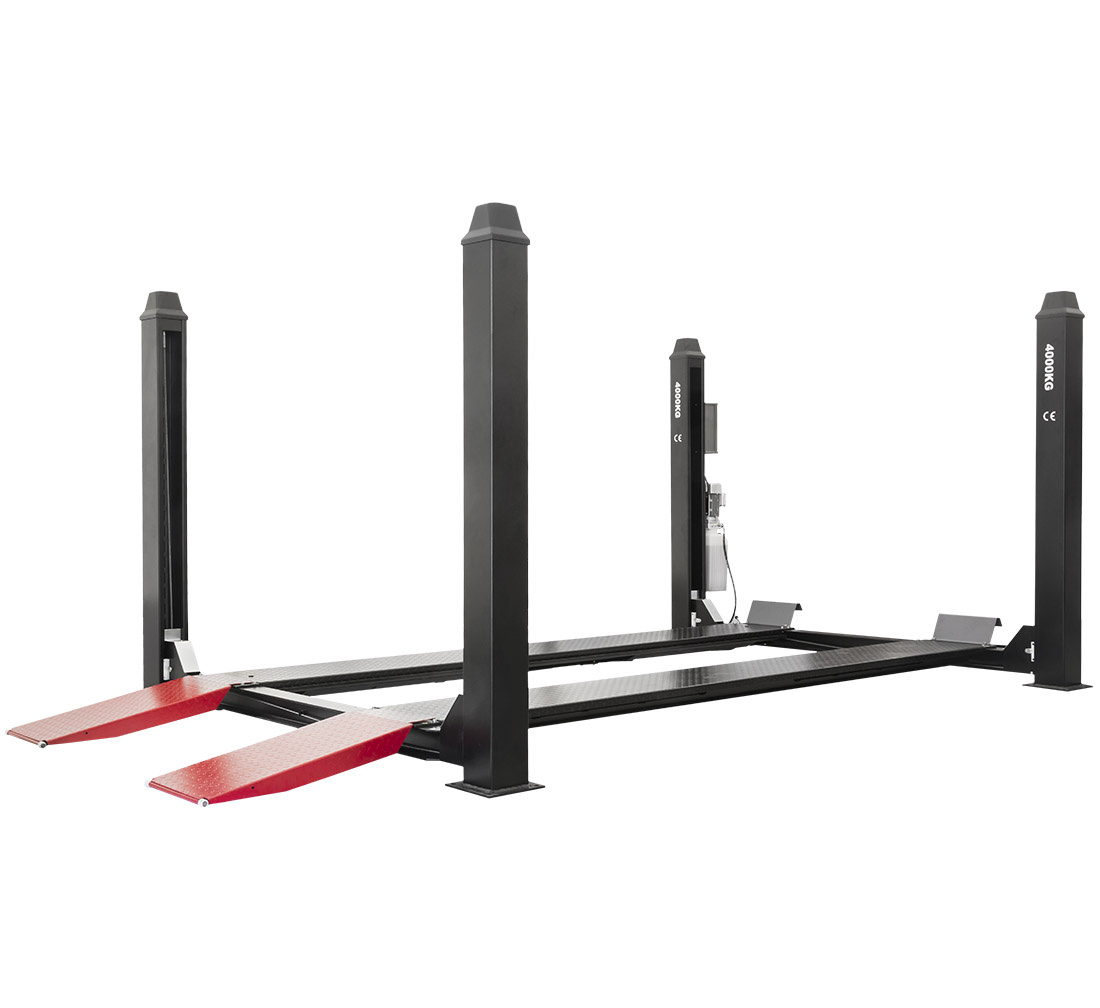

Semi-automatic four post lift 4T - REDATS L-400
Product code:30-01-86

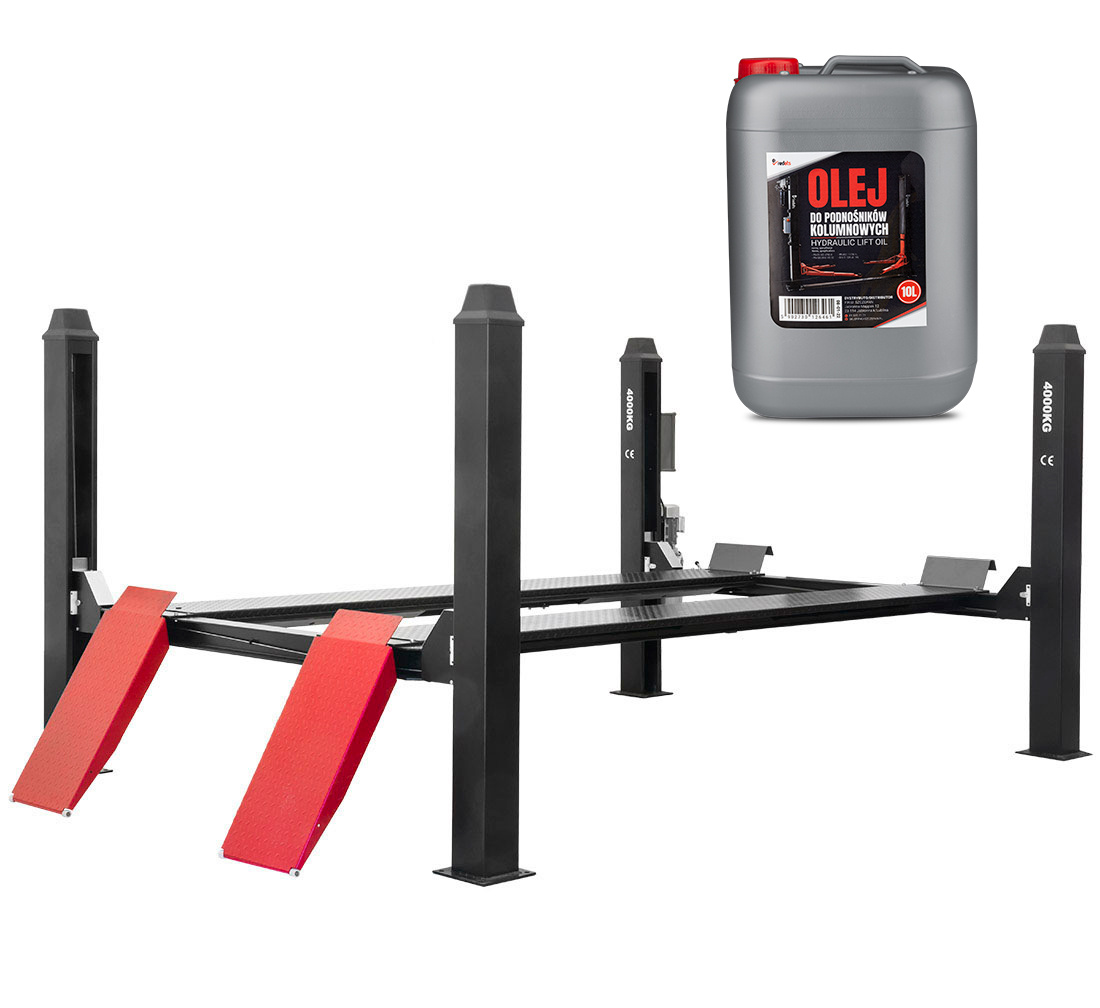

Four-post lift 4T REDATS L-400 Semi-automatic + Oil gratis

  • Four-post lift has a capacity of 4 tons. It is a great choice for car and tyre services.

Price of goods outside the set: 2 370,19 €2 370,19 €
Regular price: (You save 1%)
2 343,27 €netincl. VAT
incl. VAT / pc
Quantity:
of
10 days for easy returns
Find out in which store you can check the product and buy it right away
Four-post lift 4T REDATS L-400 Semi-automatic + Oil gratis
Four-post lift 4T REDATS L-400 Semi-automatic + Oil gratis
Type:półautomat 4T
Safe shopping

In a set

Oil for compressors 1L
Oil for compressors 1L (1 pc)
26,92 € / pc
Semi-automatic four post lift 4T - REDATS L-400
Semi-automatic four post lift 4T - REDATS L-400 (1 pc)
2 343,27 € / pc

Designed for longevity

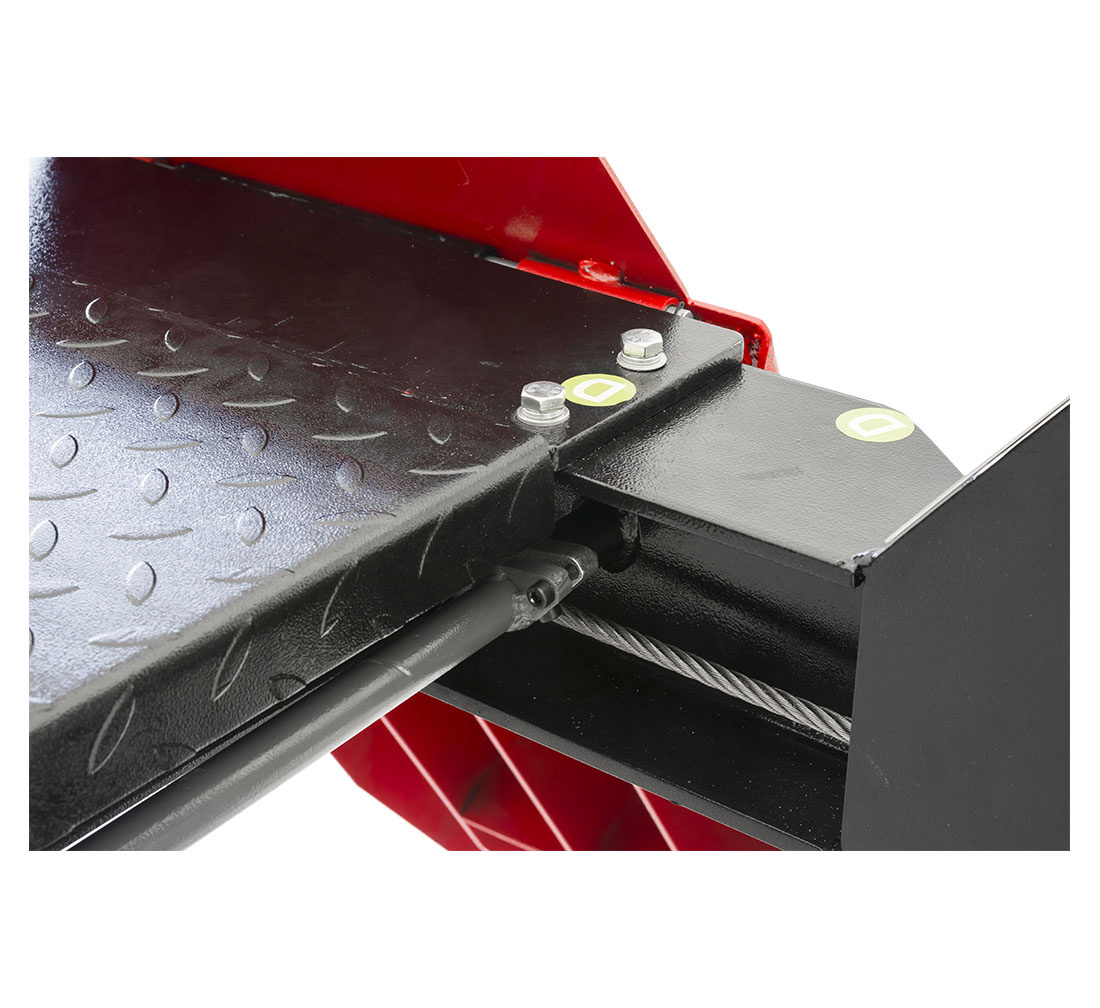

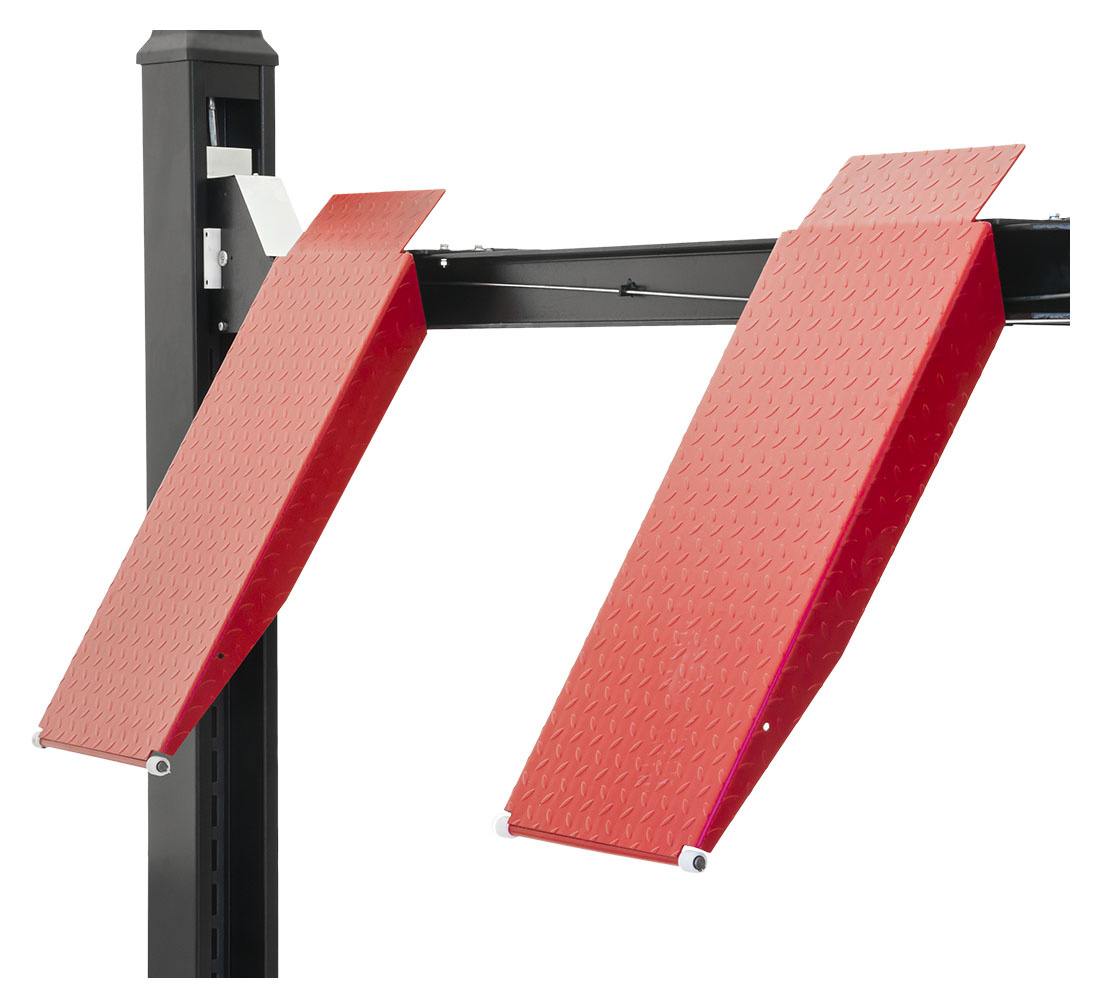

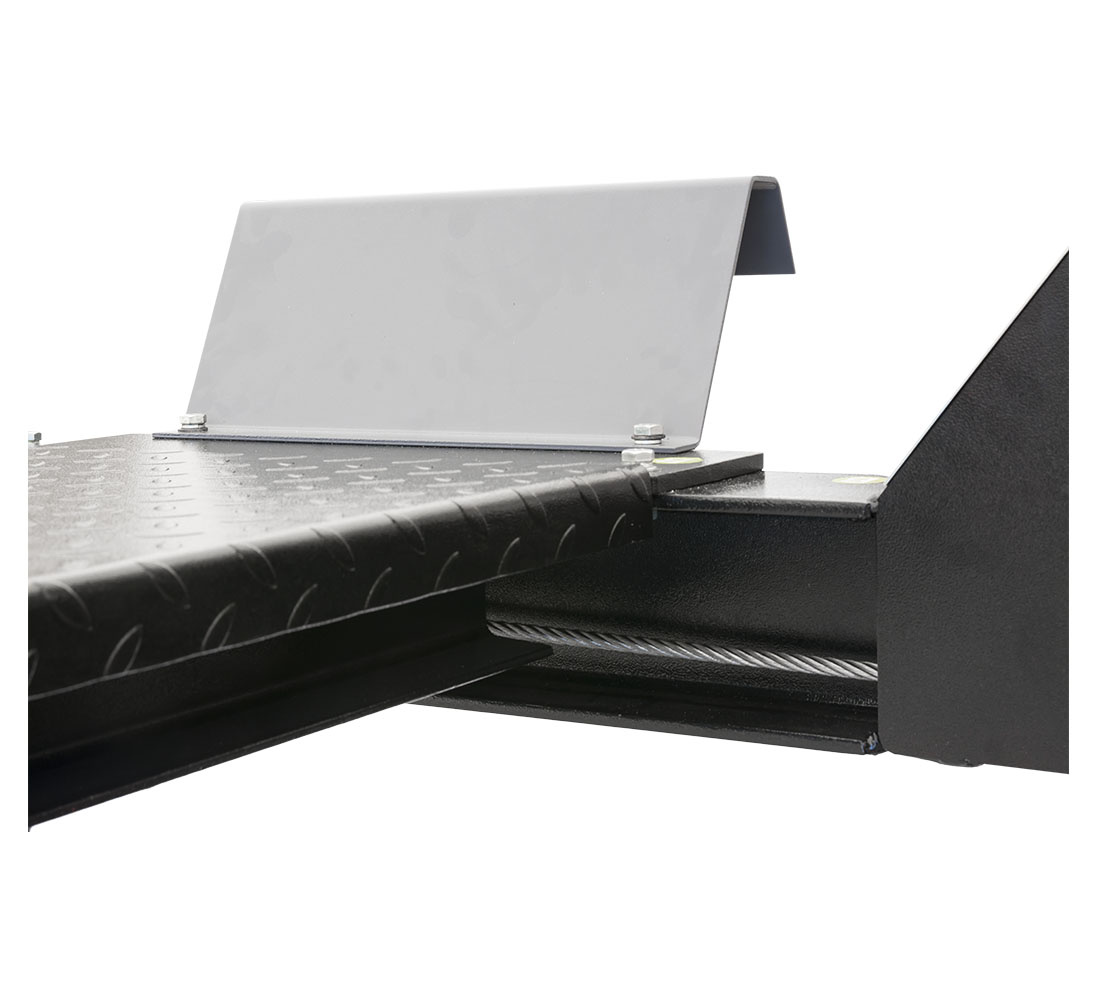

This lift has been designed to last for years to come. The ramps are made of checker plate. This means resistance to any cracks or bends. Plus to that, the plate is an anti-slip surface, which means a much better safety at work.

Safe operation

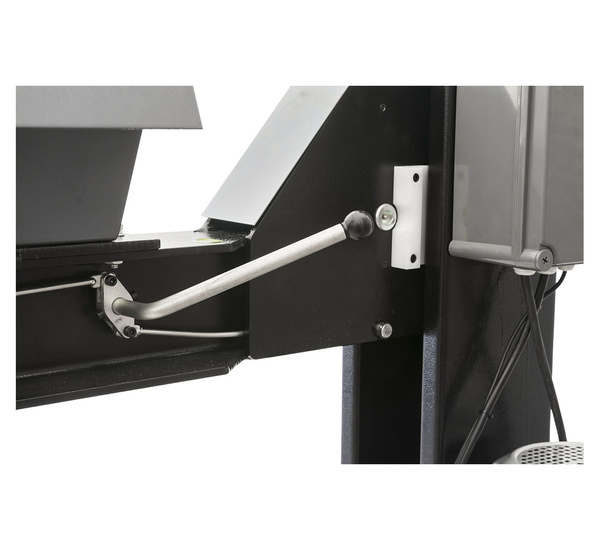

There are special locking elements. They get activated automatically, whenever the lift goes up. There is no risk of the lift's sudden going down during operation. The overflow valve checks for possible pressure

Z kolei hydrauliczny zawór przeciążeniowy czuwa nad momentem przekroczenia wartości maksymalnej ciśnienia panującego w układzie hydraulicznym.

Niezawodna konstrukcja

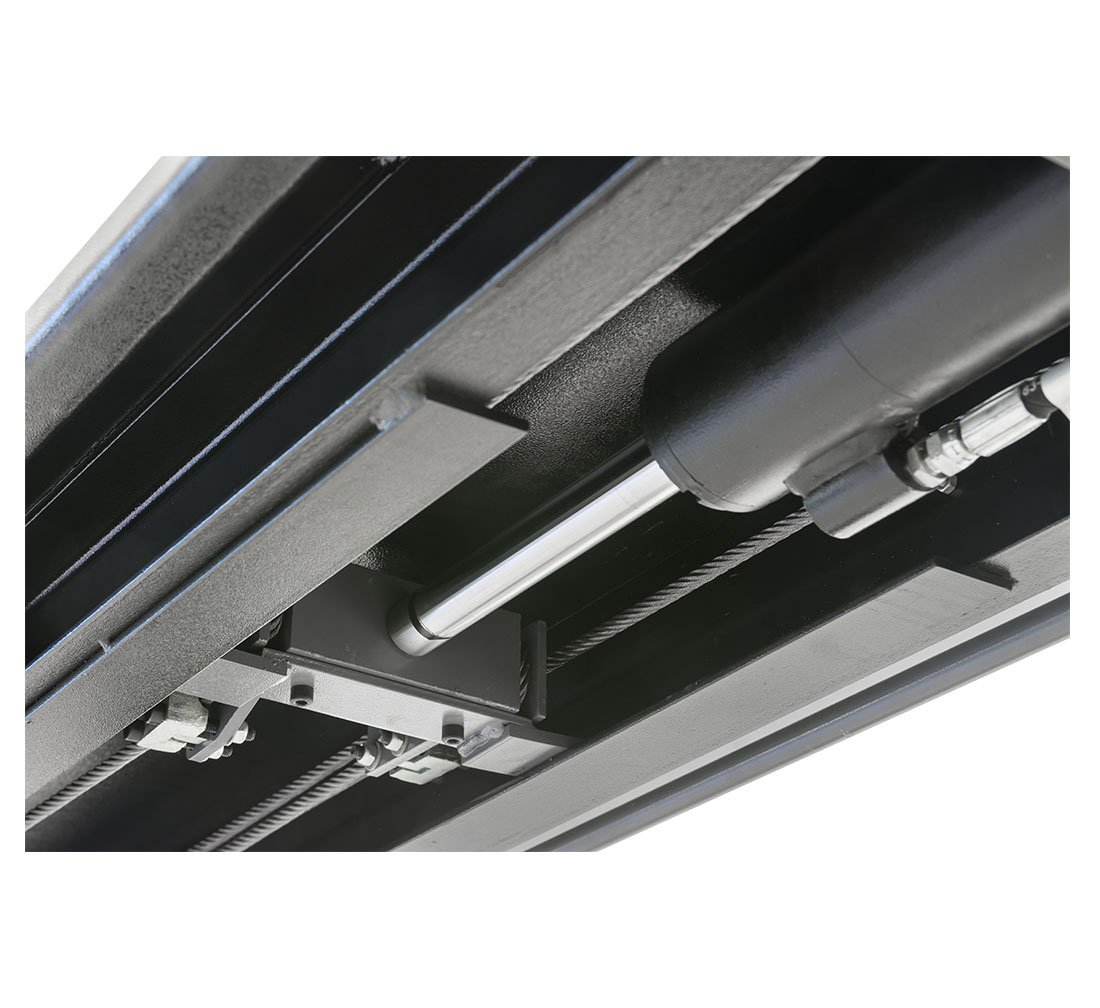

Elektrohydrauliczny napęd przekazywany jest z siłownika hydraulicznego na płyty najazdowe, za pośrednictwem stalowych lin. Takie rozwiązanie odznacza się mniejszą liczbą części ruchomych, a co za tym idzie dłuższą eksploatacją.

Zabezpieczenie lin przed pękaniem
W standardzie, podnośnik wyposażony został w zabezpieczenia zapobiegające zerwaniu lin stalowych.

Expert's review:

Radosław: Long cars won't be a problem

Experts photo
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Technical specification
Brand
Symbol
30-01-86
Producer code
5902730154808
maximum capacity
4 tons
true
Type
półautomat 4T
Ramp setting
800 - 950 mm
Runway length
1010 mm
Power
2.2 kW
Lifting height
250 - 1750 mm
Time to full rise
ca. 50 seconds
Time to full lowering
ca. 50 seconds
Runway width
530 mm
Runway height (resting position)
200 mm
Ramp length (without runways)
4250 mm
Safety features
safety feature against rope breakdown
a ratchet-based security system
locks against car's rolling down
Hydraulic overflow valve
safe voltage adjustment 24V
Power source
400V
Oil tank capacity
12L
Required oil amount
10L (80% of tank)
Noise level
<76db
Weight
950 kg

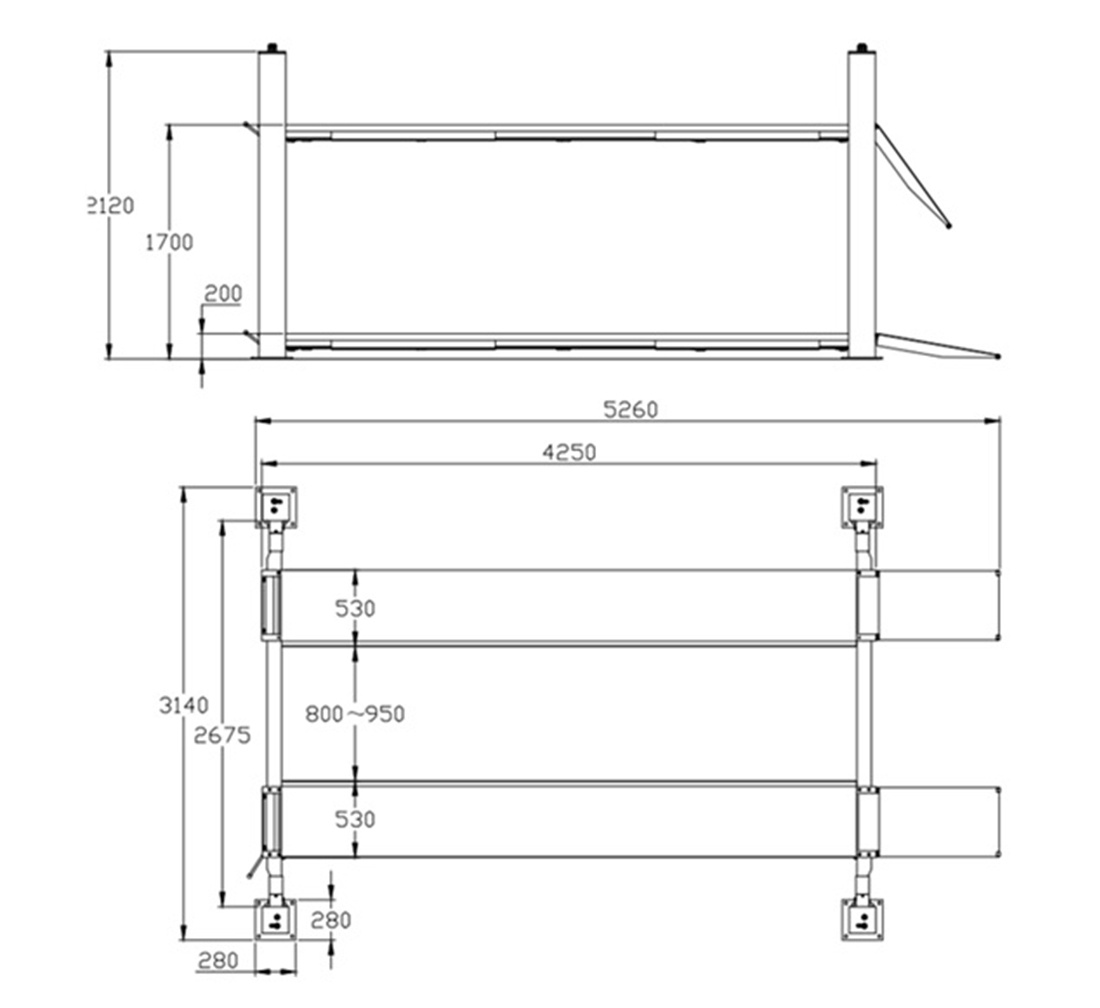

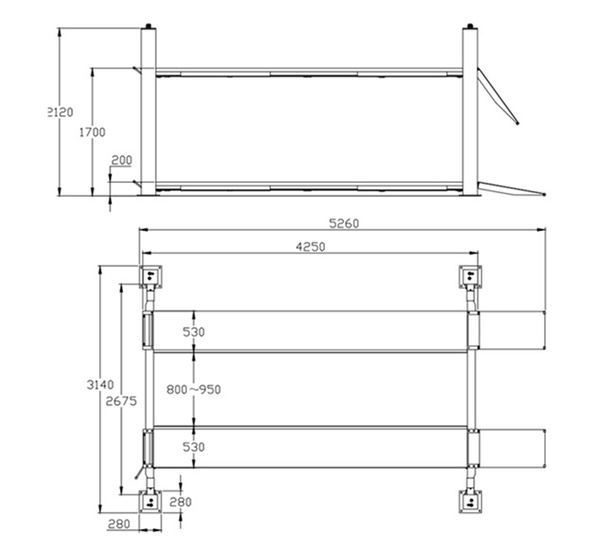

Dimensions (length x width x height)
5260 x 3140 x 2120 mm
Warranty
2 years (provided regular maintenance)
Hydraulic oil 10 L
free
OK with Technical Supervision Office requirements?
YES
