Product code:90-01-97
Ask a question
Write your opinion
Technical specification
Brand
Symbol
90-01-97
Producer code
5902730168201
Type
semi-automatic
Rim diameter
10" - 24"
Rim width
1,5" - 20"
Application
cars and car-derived vans
Power source
230V 50Hz
Hidden weight program
none
ALU wheel programs
4
Auto-ALU (choosing the spot for adhering weights)
none
Voice synthesizer
none
Max wheel weight
65 kg
Measuring cycle time
8 seconds

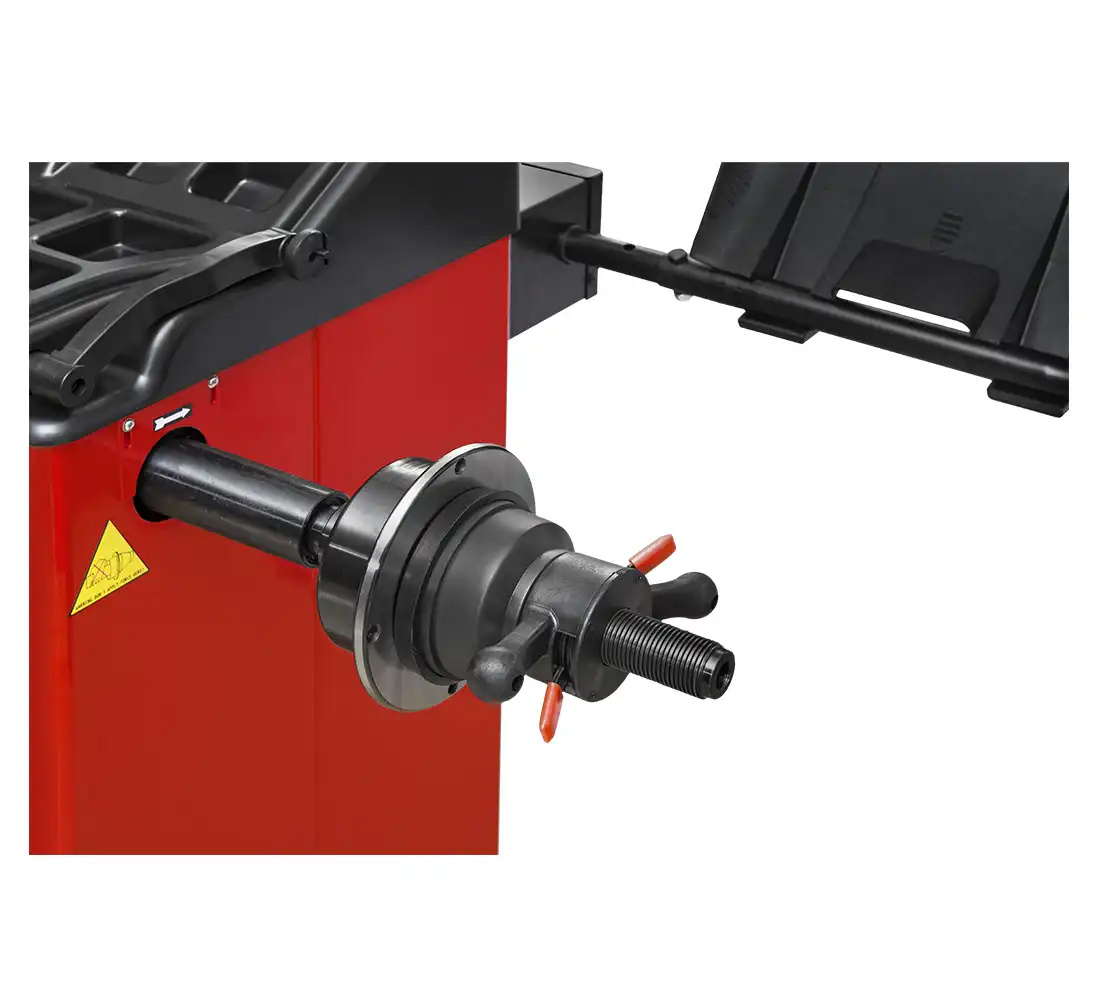

Shaft diameter
36mm (diameter) x 3mm (thread pitch)
Operators' memory
no
Rotating torque
200 RPM
Noise level
< 70 dB
Power
0,2 kW

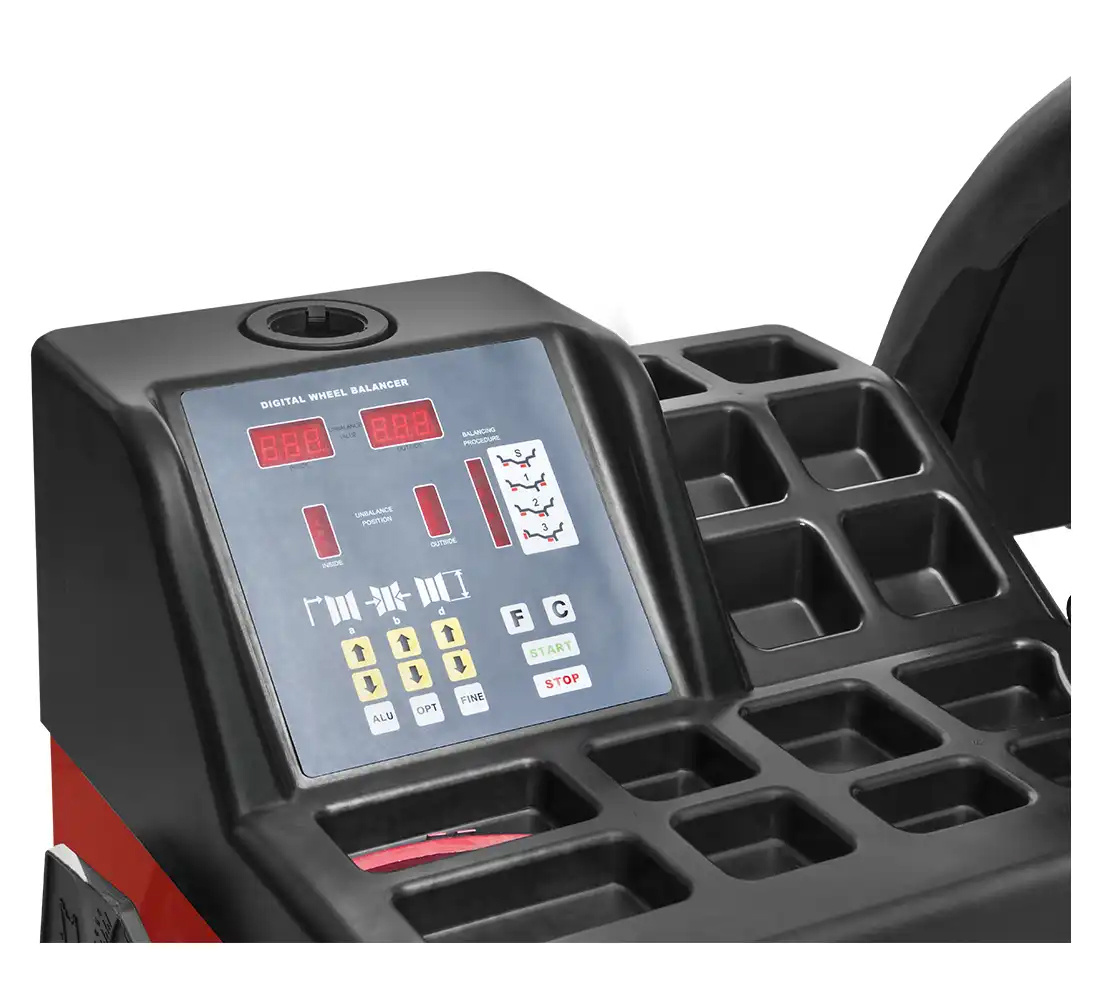

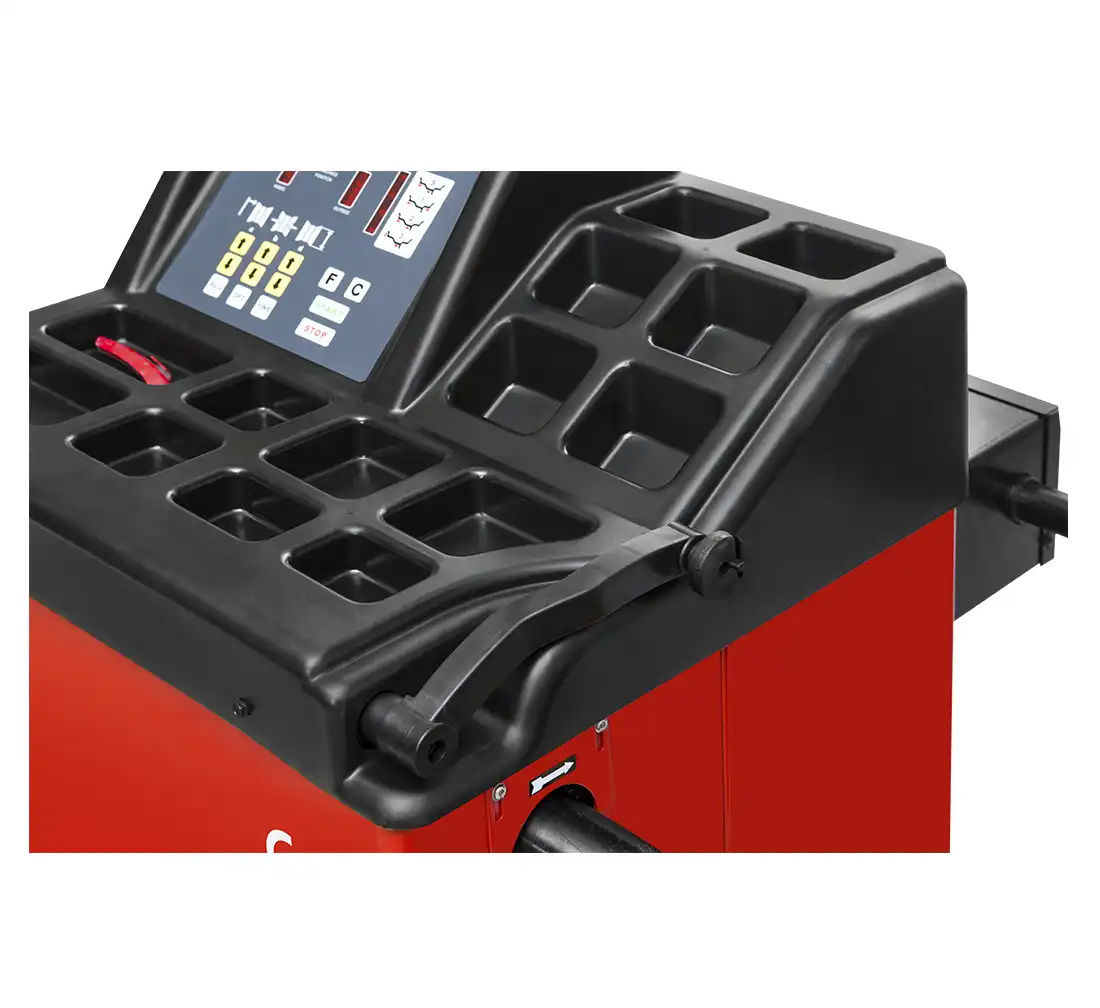

Display
LED
Min imbalance
1g
Shaft blocking
none
Additional options
Optimisationi
Optimisation is for lowering the number of weights to be mounted onto the rim, so that the tyre is located on a rim i a way that the rim's imbalance is equal to tyre's imbalance, which minimizes the wheel imbalance.
Autocalibration
Maximum energy consumption
0,2kW
Lift
no
Imbalance positioning
LED lights
sound alarm
Automatic data entering
none

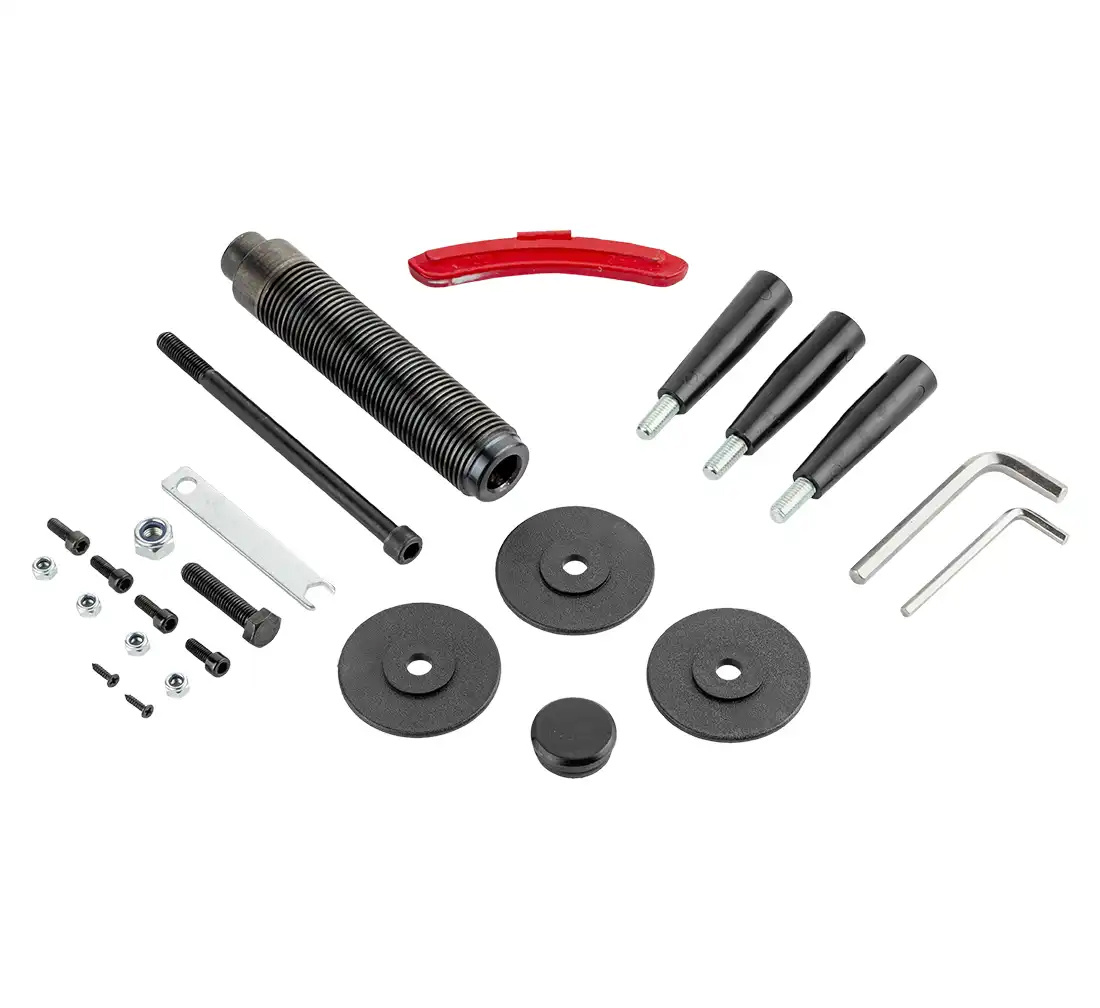

Standard equipment
4x Cones (43-66,65-85,84-102,94-135)
1x Pliers
1x Calibration clip-on weight 100g
1x quick-nut
1x Small bushing
1x Large bushing + rubber
1x plastic caliper
1x threaded shaft 36*3
1 x Paper manual
3x cones hanger
Dimensions
1097 x 737 x 1500 mm
Weight
75 kg
Manufacturer
REDATS
Warranty
24 months (extension possible)
Extra functions
-
Warranty (for companies)
12 months (extension possible)
