Tyre changer REDATS M-201 - 230V
Product code:30-05-89

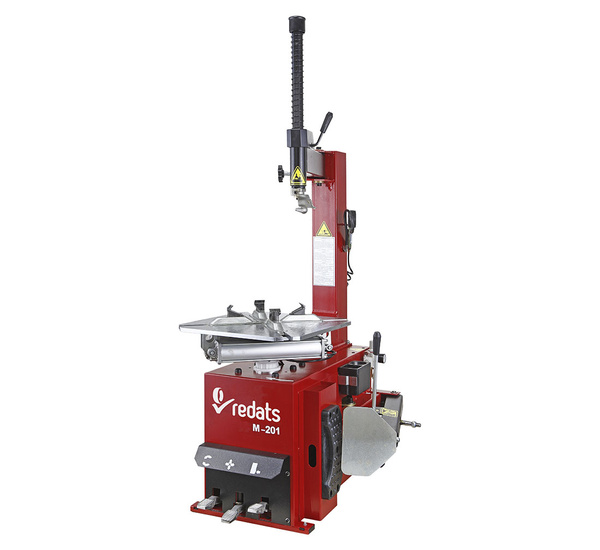

Tyre changer REDATS M-201 - 230V

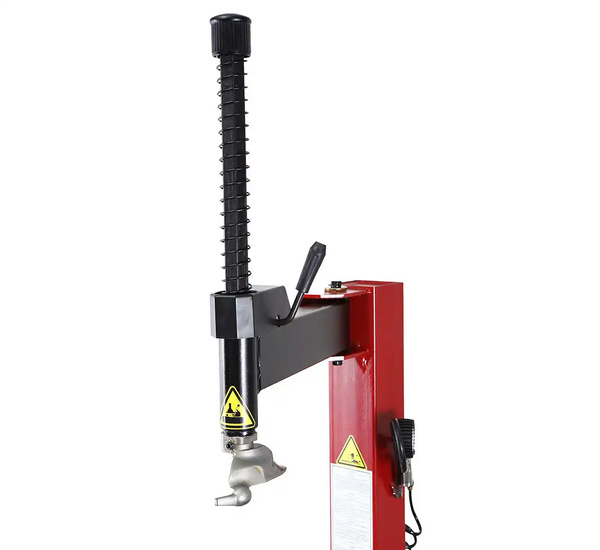

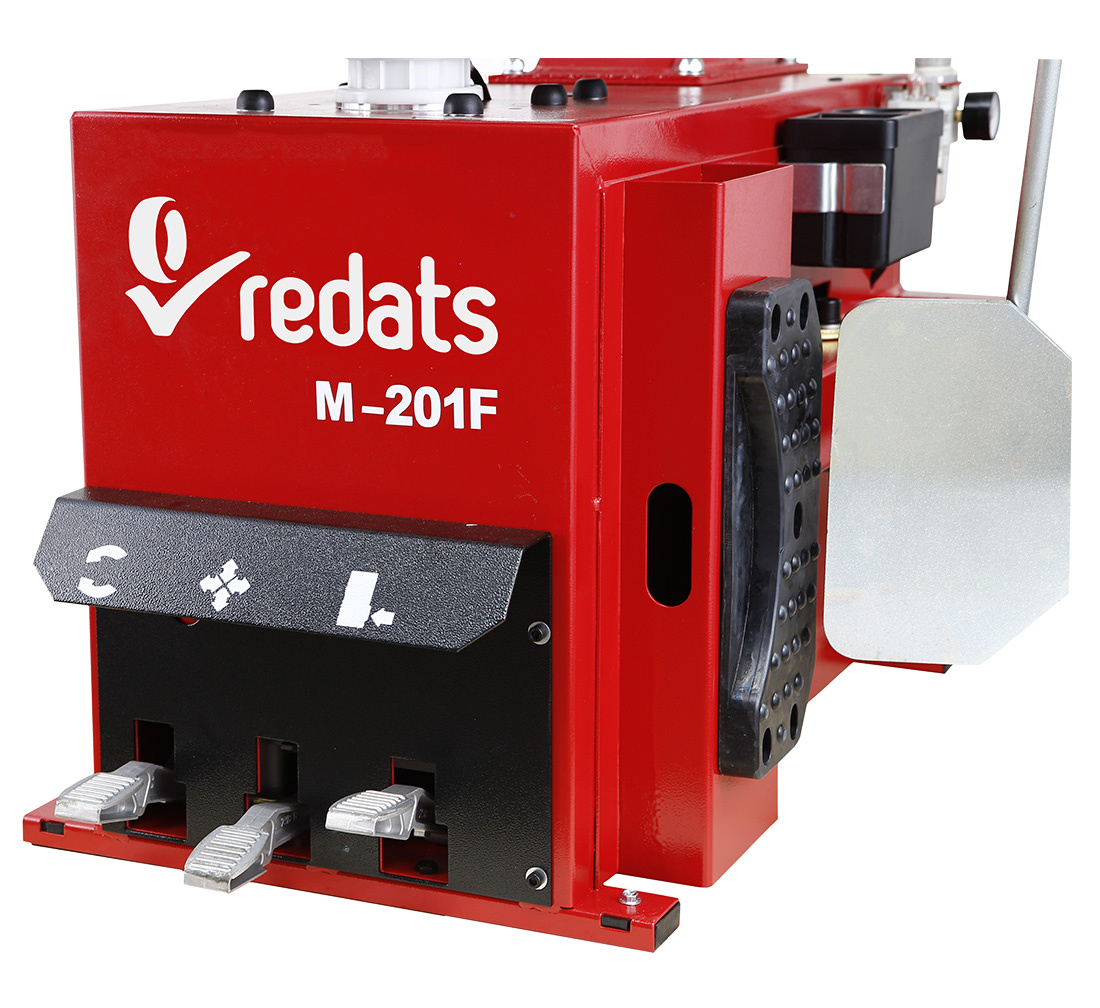

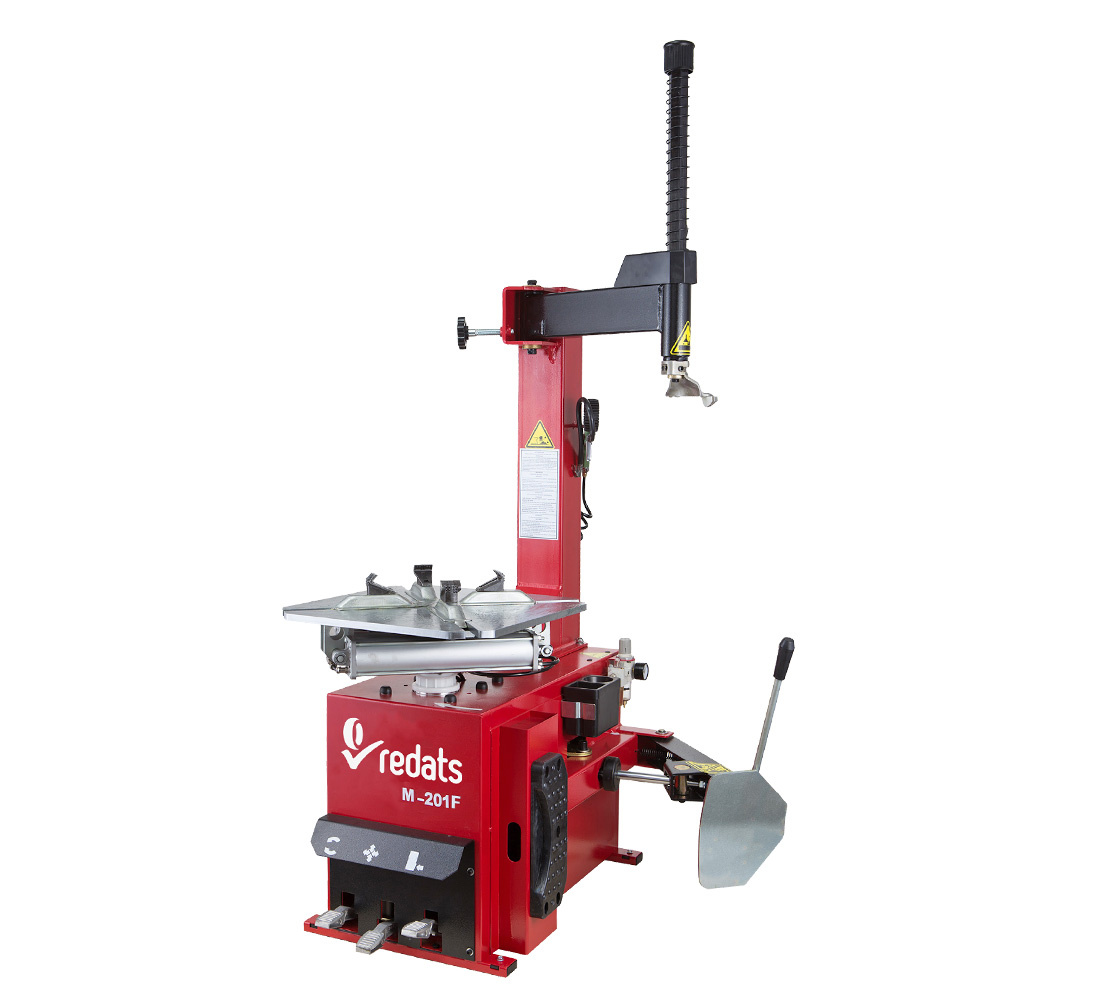

  • Semi-automatic assembly unit with manually swivelling arm to the side and counter-rotating screw. Mounting foot vertically adjustable and lockable by lever with eccentric mechanism.

Price of goods outside the set: 982,84 €982,84 €
Regular price: (You save 1%)
964,77 €netincl. VAT
incl. VAT / pc
Quantity:
of
10 days for easy returns
Safe shopping

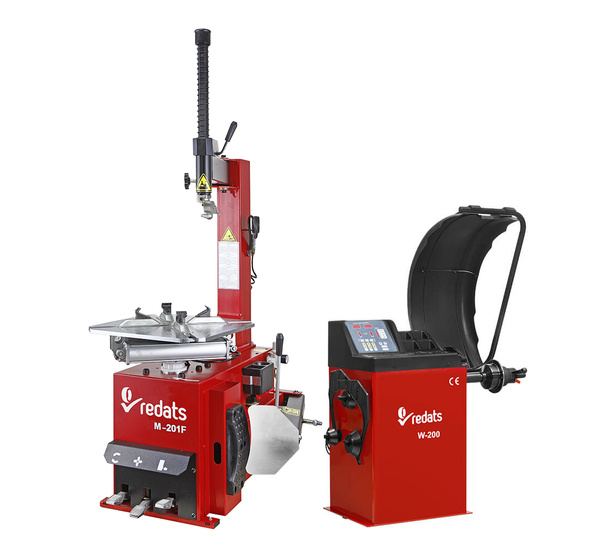

In a set

Wheel balancer - REDATS W-200
Wheel balancer - REDATS W-200 (1 pc)
355,92 € / pc
Tyre changer REDATS M-201 - 230V
Tyre changer REDATS M-201 - 230V (1 pc)
626,92 € / pc

No problems in sight!

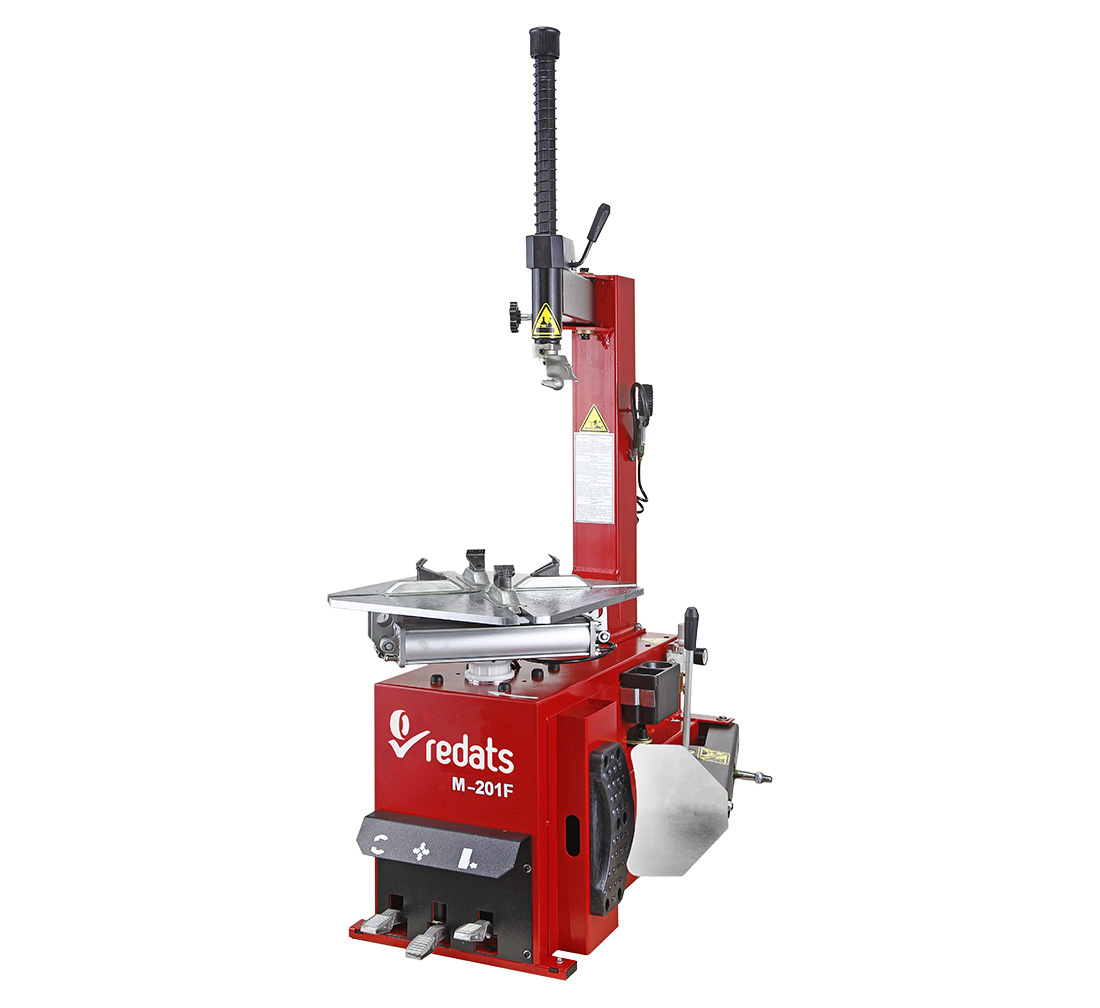

This is a semi-automatic tyre changer. The guiding rails for the jaws are made in a way to smoothly lead the jaws through the table and prevent any larger dirt from getting inside.

Reliability to envy

Got customers inquiring about reliable tyre changers? This is a perfect proposition for them. Every part in this tyre changer has undergone a variety of durability tests. And perfect quality of the pneumatic parts, as well as the jaws made of single cast mean years-long use.

What tyres is it for?

This tyre changer can be used for both passenger car wheels, as well as light commercial vans. Plus to that, it is really easy to work with. All it takes is just one-two uses of the tyre

One-phase version

This tyre changer can be powered by a one-phase source.

Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Technical specification
Brand
Symbol
30-05-89
Producer code
5902730147145
Manufacturer
REDATS
Type
semi-automatic
Power source
230V 50Hz
Warranty
24 months
Warranty (for companies)
12 months
• Tyre changer M-201
External jaw spacing range
10" - 21"
Internal jaw spacing range
12" - 24"
Maximum wheel width
355 mm
Max. wheel diameter
1000 mm
Power
0.75 kW
Bead breaker shovel force
2500 kg
Working Pressure
8 - 10 Bar
Noise level
< 75 dB
Turntable max. torque
1078 Nm
Table rotation speed
6 RPM
Runflat/Low profile tyres
no
Blocking of the arm and head
Manual
Application
cars and car-derived vans

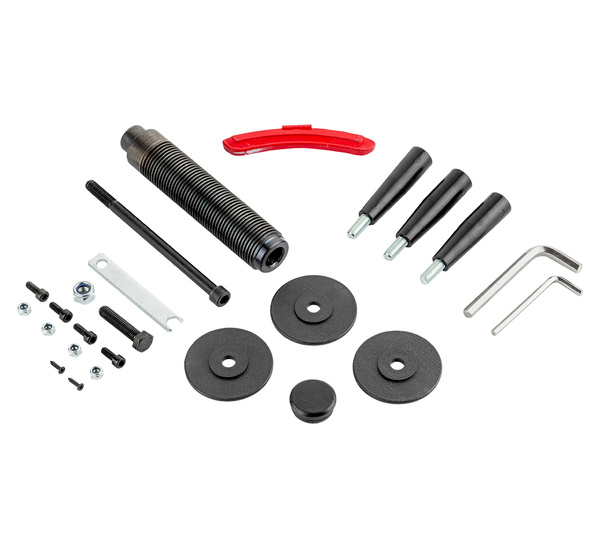

Standard equipment

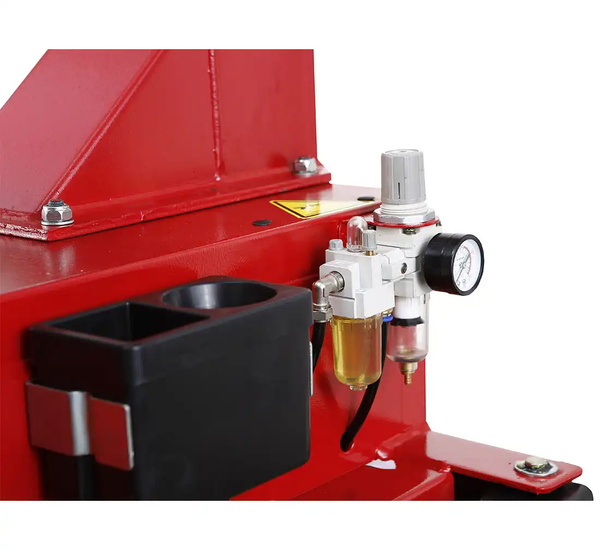

Oil lubricator + air preparation unit

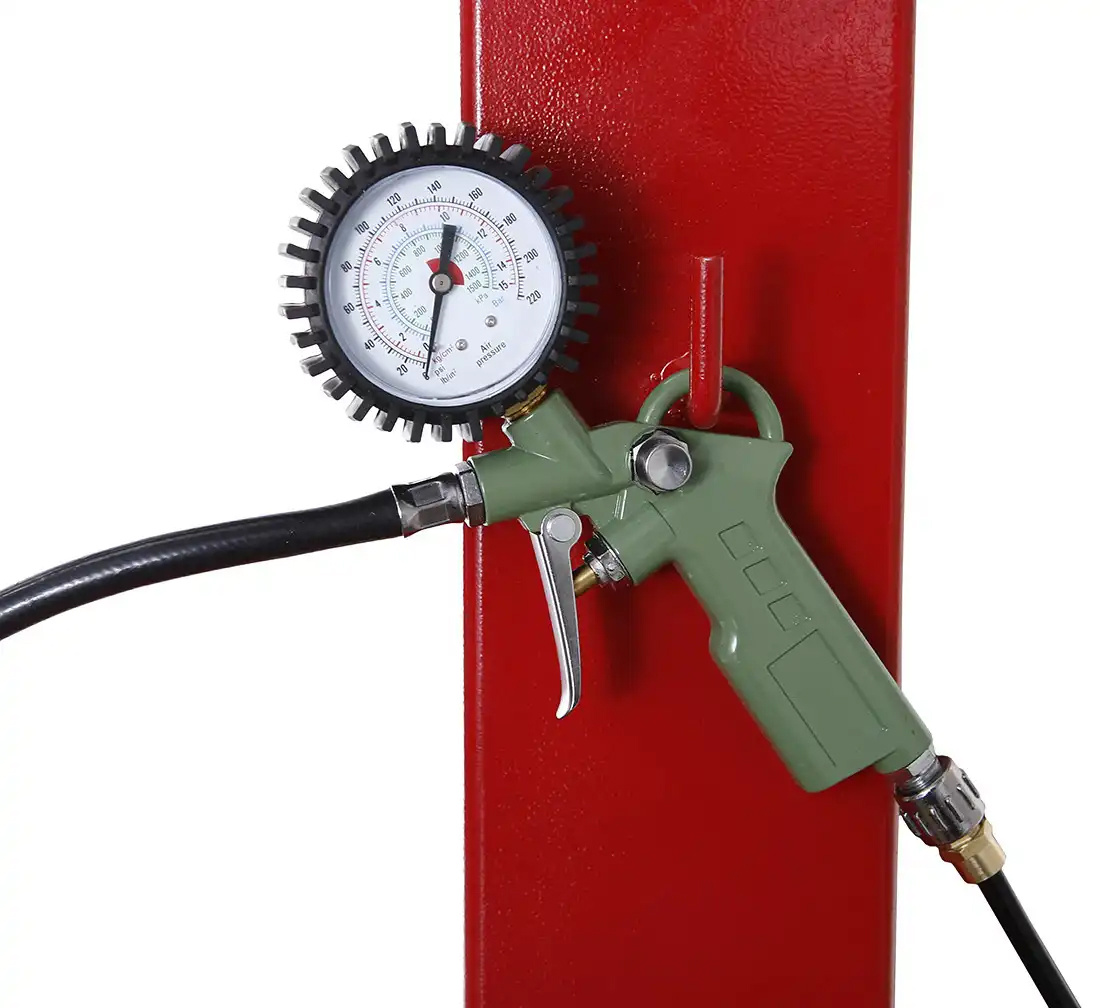

Inflation gun with manometer
plastic overlays
Jaw caps
Tyre lever
Accessories bucket
Weight
190 kg
Dimensions (height x depth x width)
185 x 95 x 75 cm

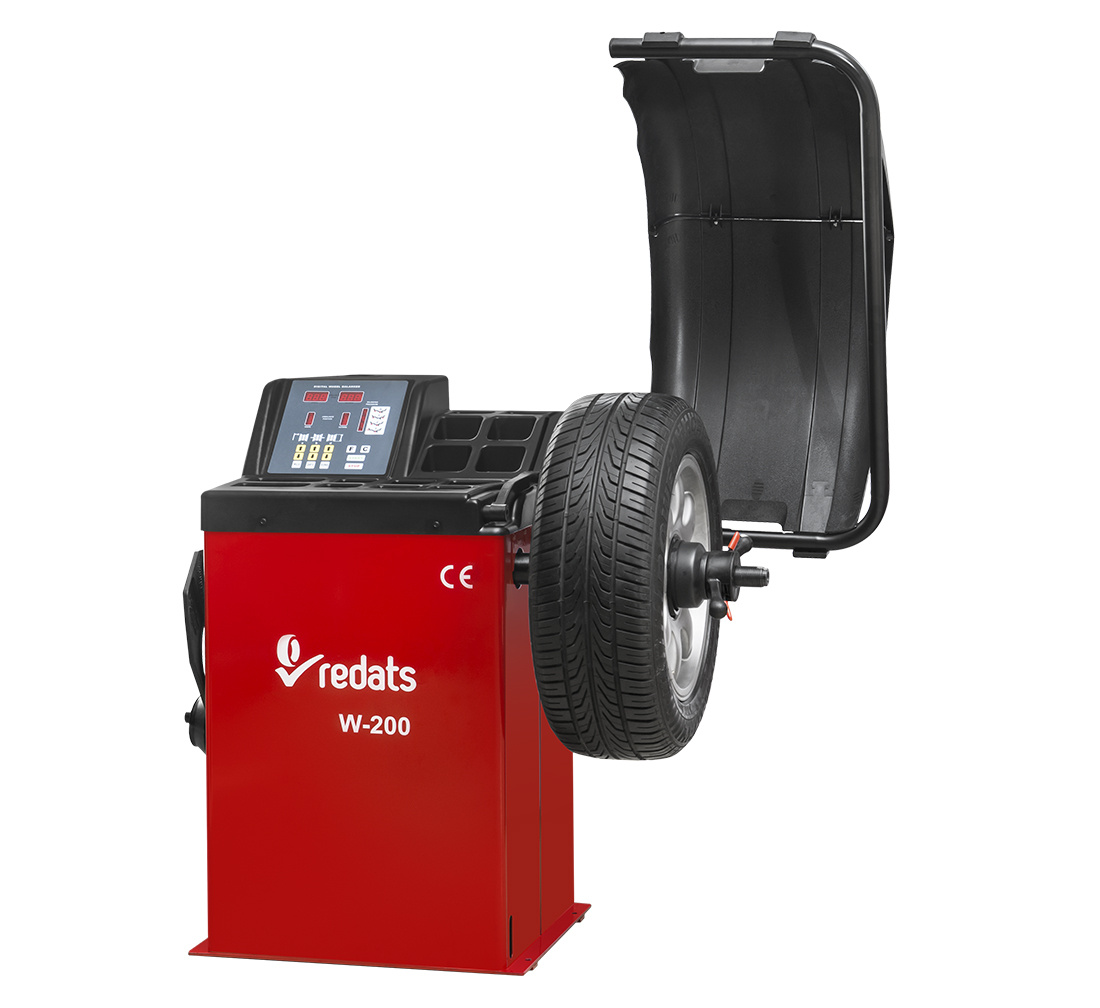

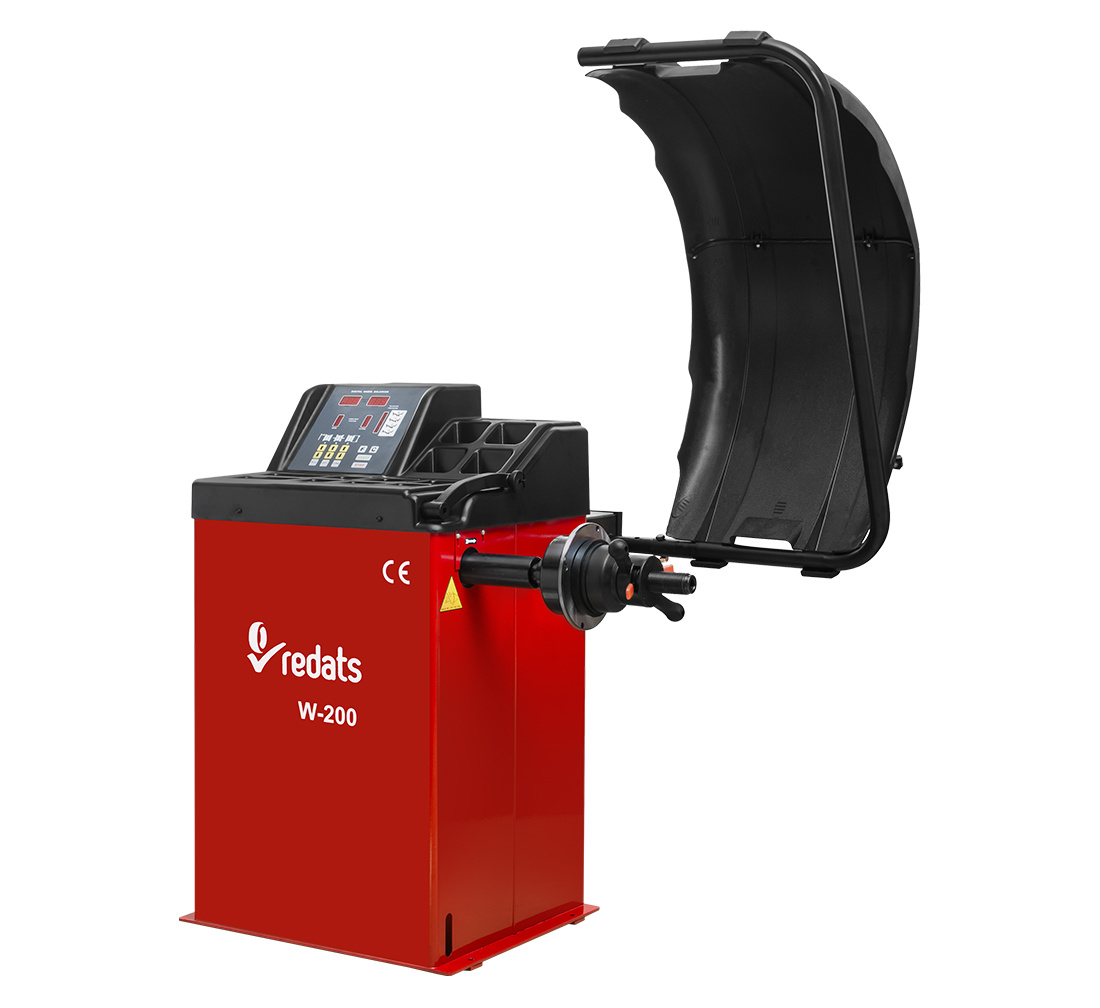

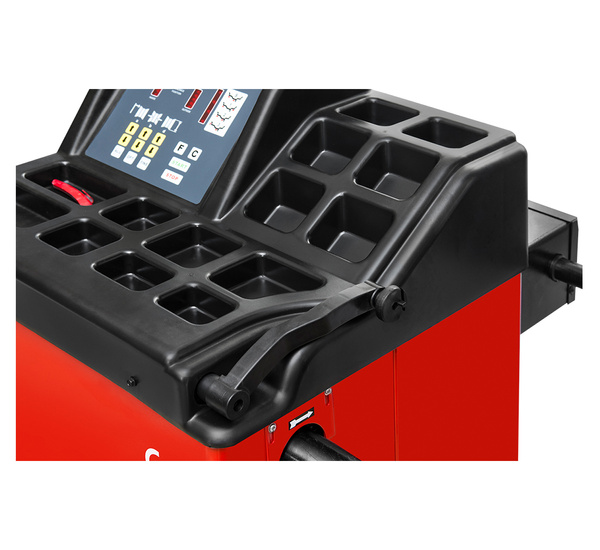

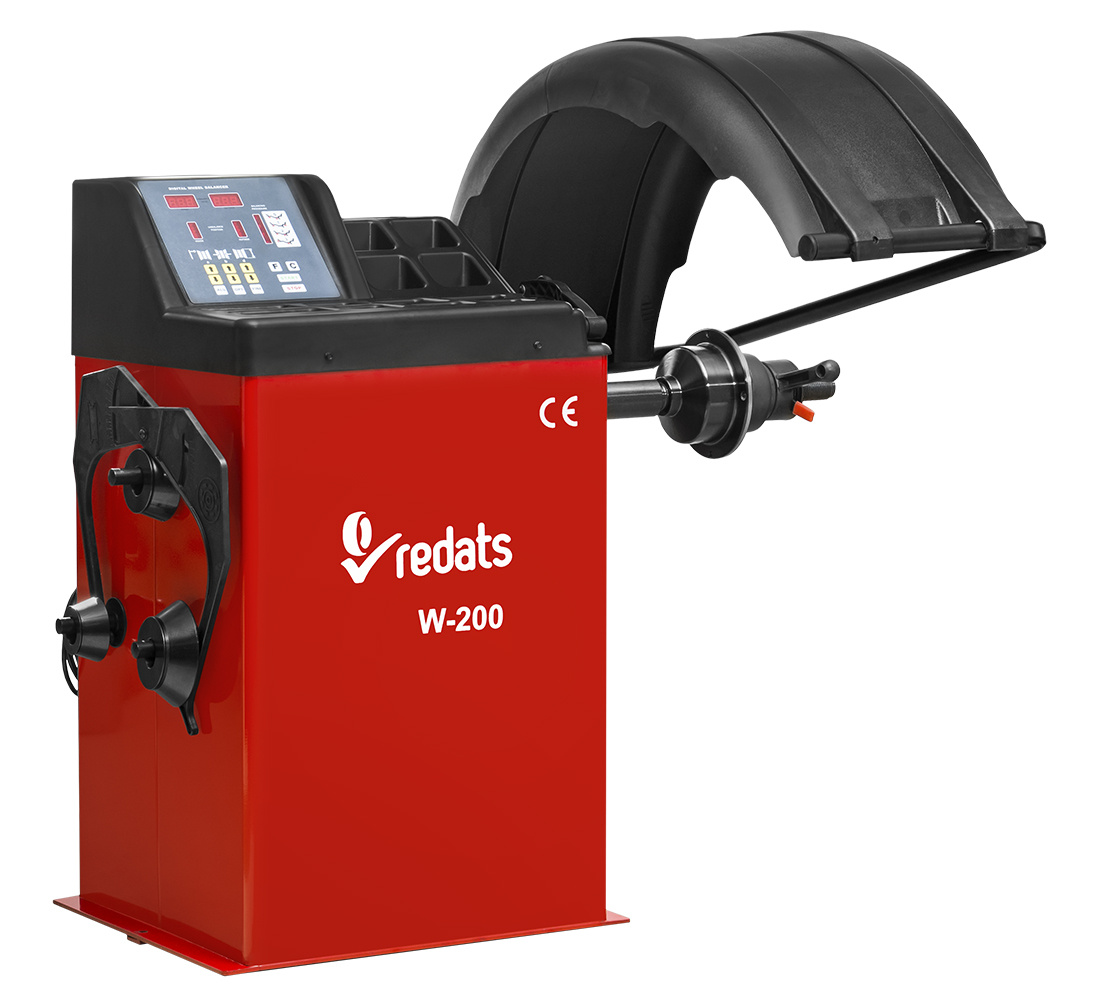

wheel balancer W-200
Rim diameter
10" - 24"
Rim width
1,5" - 20"
ALU wheel programs
4
Max wheel weight
65 kg
Measuring cycle time
8 seconds

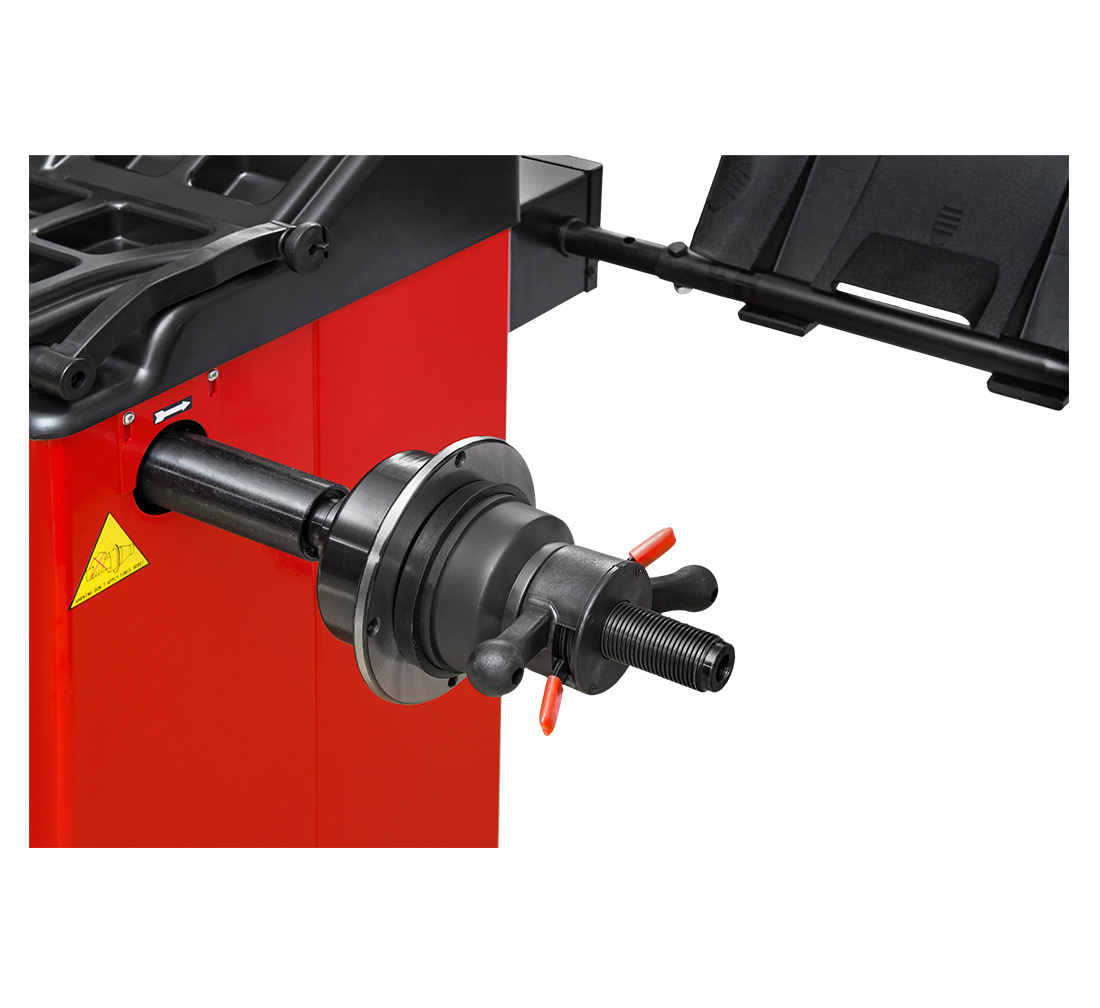

Shaft diameter
36mm (diameter) x 3mm (thread pitch)
Rotating torque
200 RPM
Horsepower of the rotating engine
0,2 kW
Imbalance positioning
LED lights, sound alarm
Display
LED
Min imbalance
1 g
Dimensions
108 x 57 x 90 cm
Additional options
Optimisationi

Optimisation is for lowering the number of weights to be mounted onto the rim, so that the tyre is located on a rim i a way that the rim's imbalance is equal to tyre's imbalance, which minimizes the wheel imbalance.

Autocalibration
Waga wyważarki
77 kg
