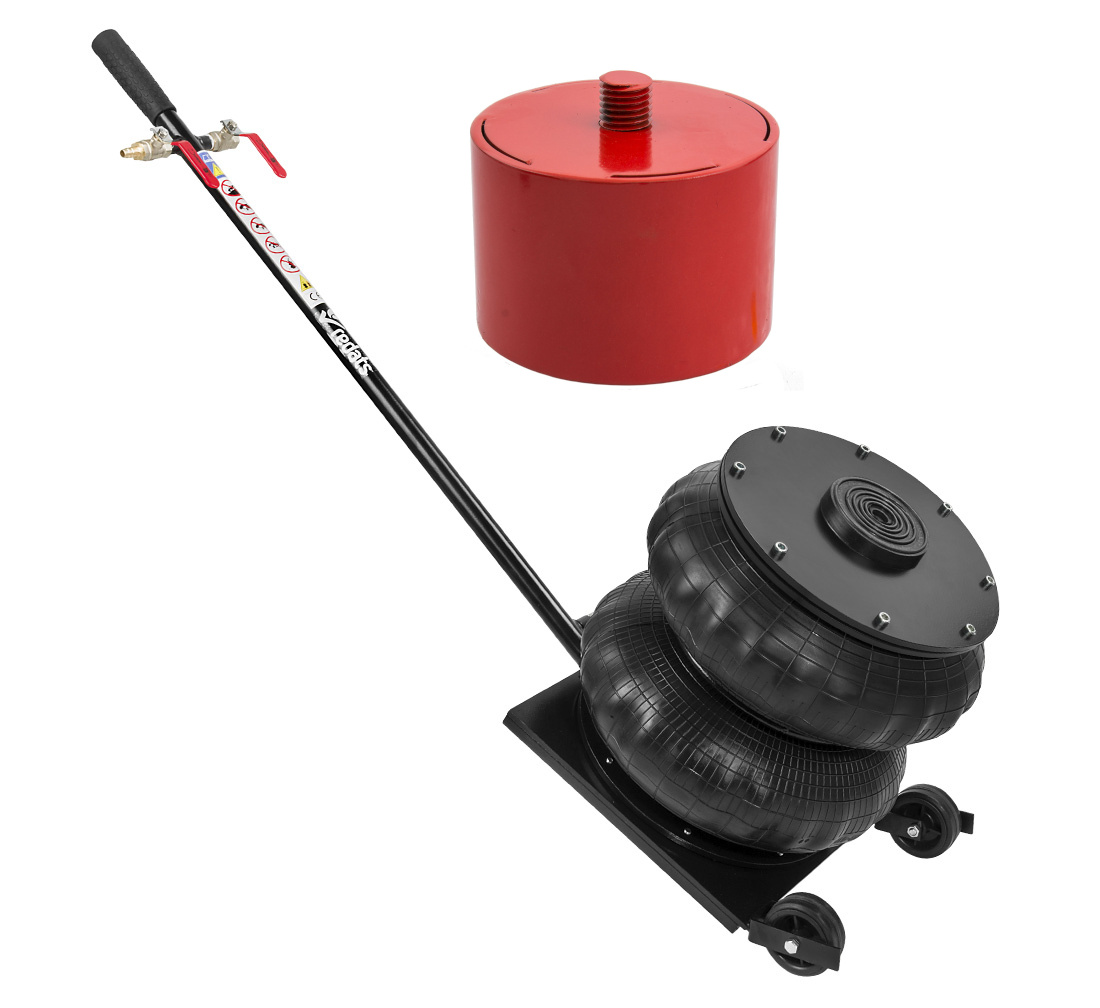

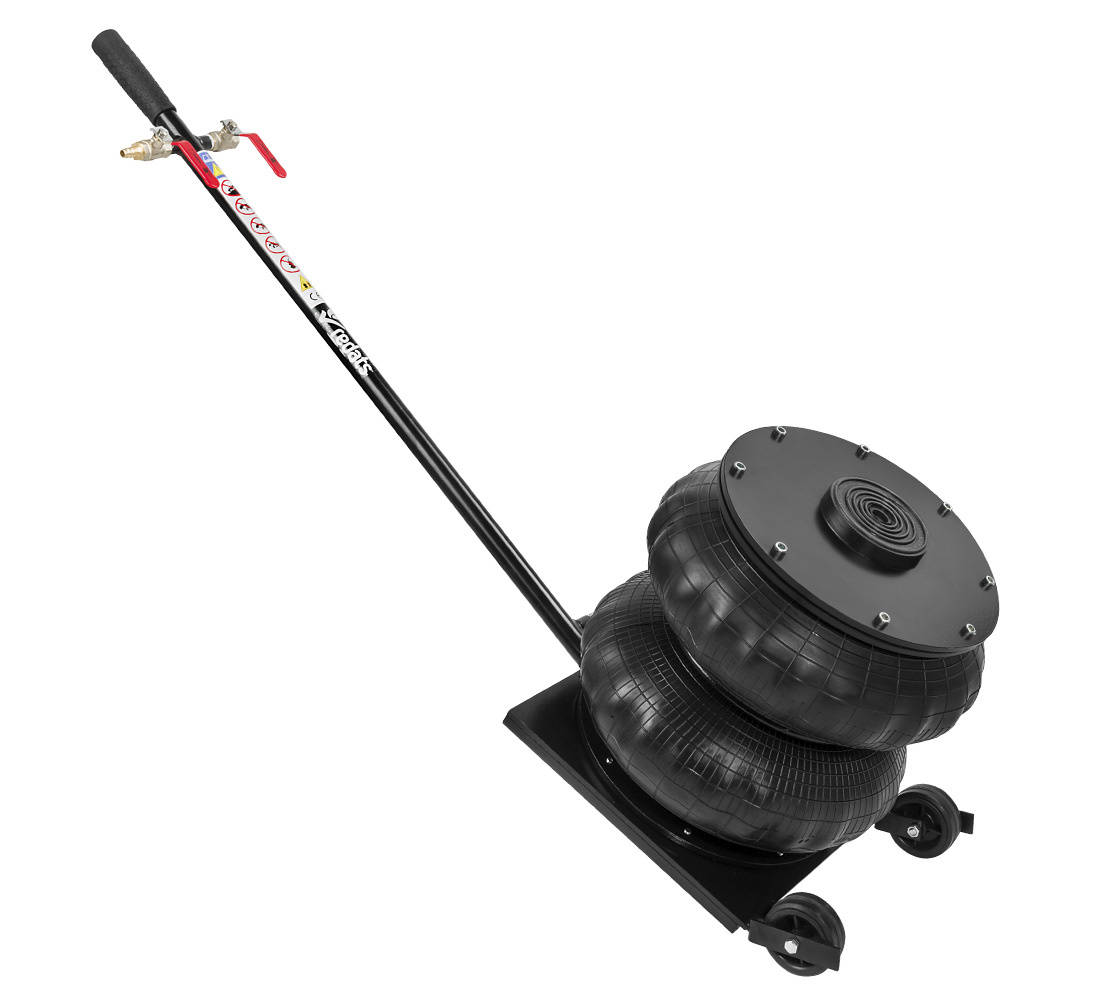

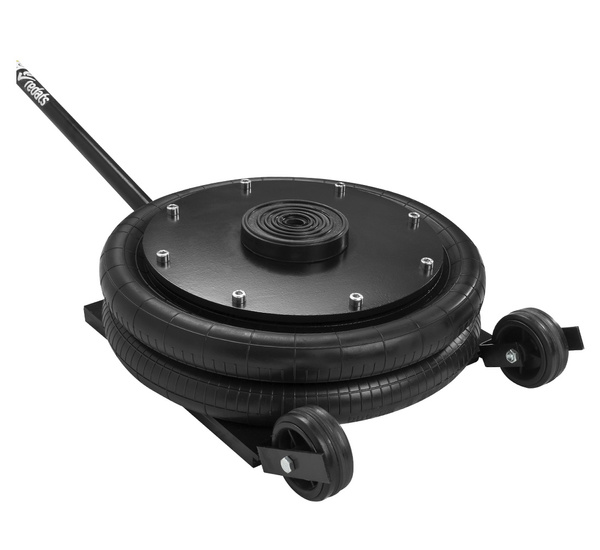

Pneumatic air jack - REDATS 8T + Overlay 8 cm

REDATS 8T air jack - essential info
Show this technical datasheet to your clients interested in getting an air jack

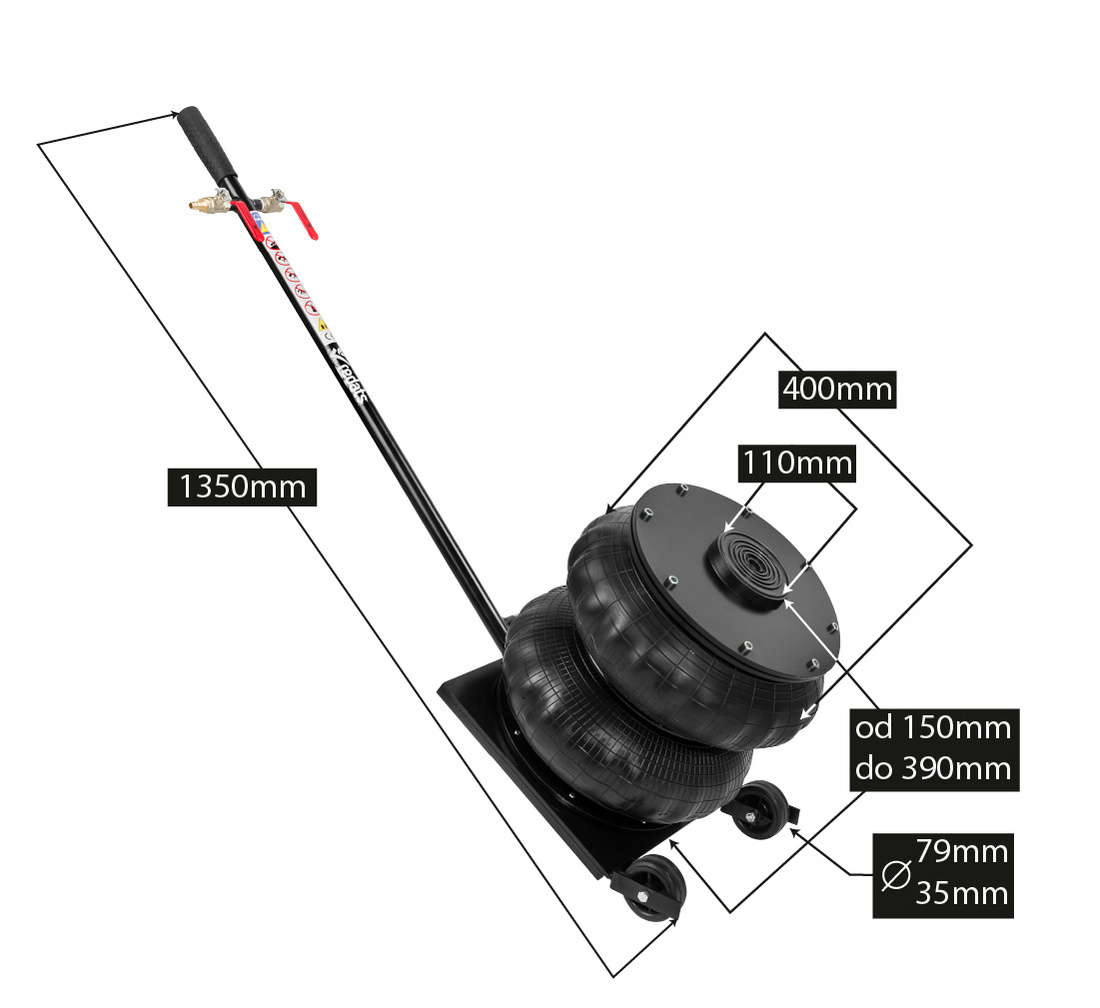

• maximum capacity: 8 ton
• Type: long
• Max. height: ca. 39 cm
• Base height: ca. 15 cm
• Bag diameter: 40 cm
• Length with handle: 135 cm
• Working Pressure: 6 - 8 bar
• Lifting rubber diameter: 11 cm
• Overlay thickness: 8 cm

Who is it for?
This air jack is perfect for tyre and wheel jobs in the following car types:

• passenger cars
• vans
• lighter trucks

It comes with 8 tons capacity.

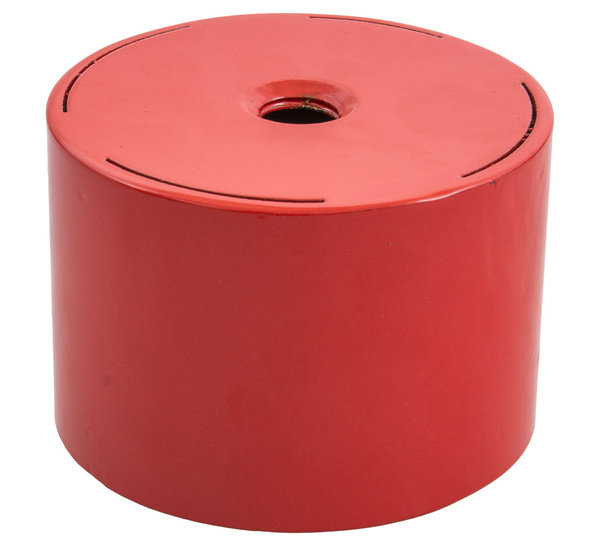

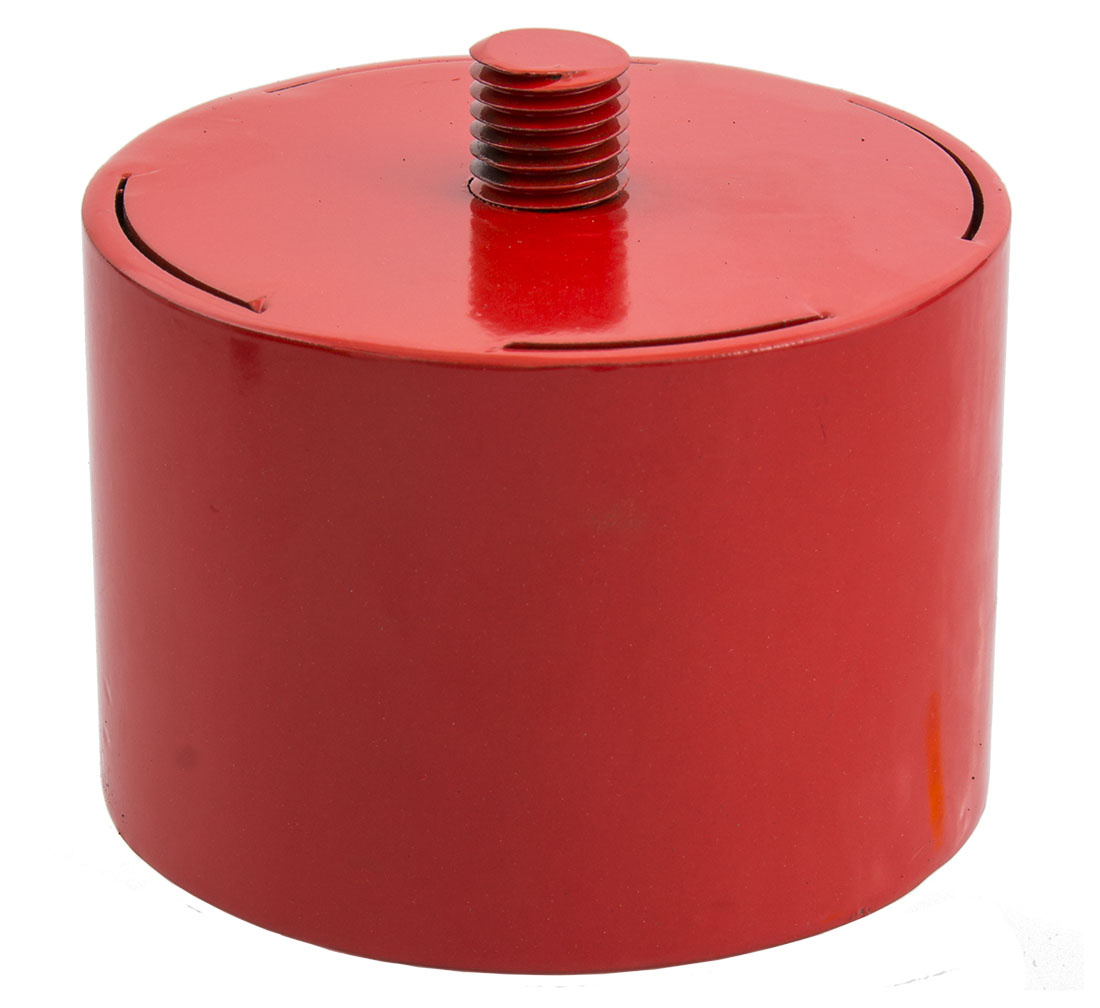

What is the overlay for?
Thanks to the overlay, any vehicle can be raised to another 8 centimeters.

Exceptional reliability

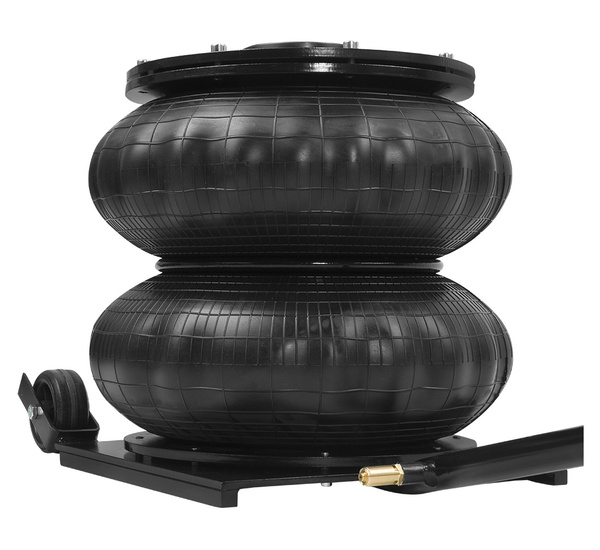

While designing this air jack we used top quality materials only. Cushion with three layers was made of reinforced rubber. The telescopic structure of the lift means a better stability and eliminates the risk of the lift’s swinging.

Safe for car

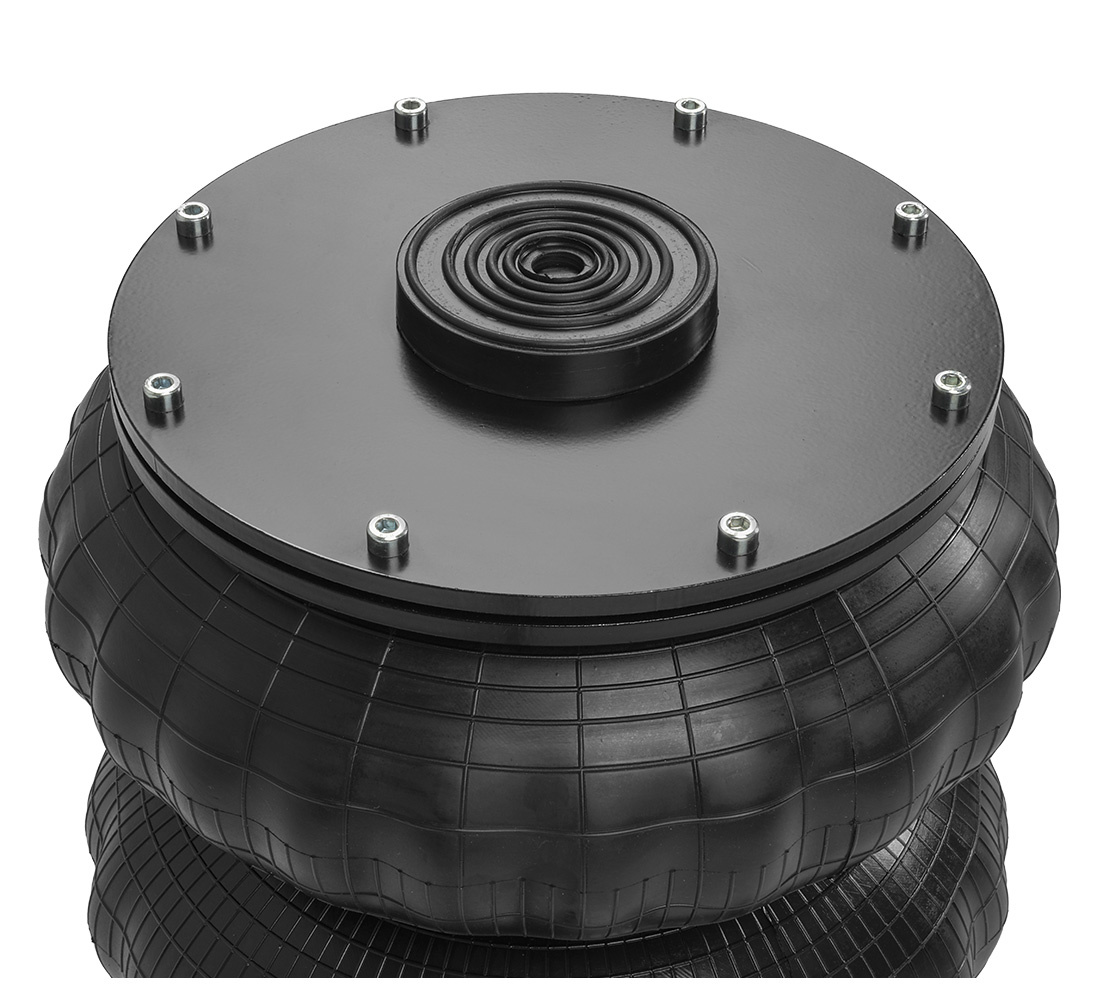

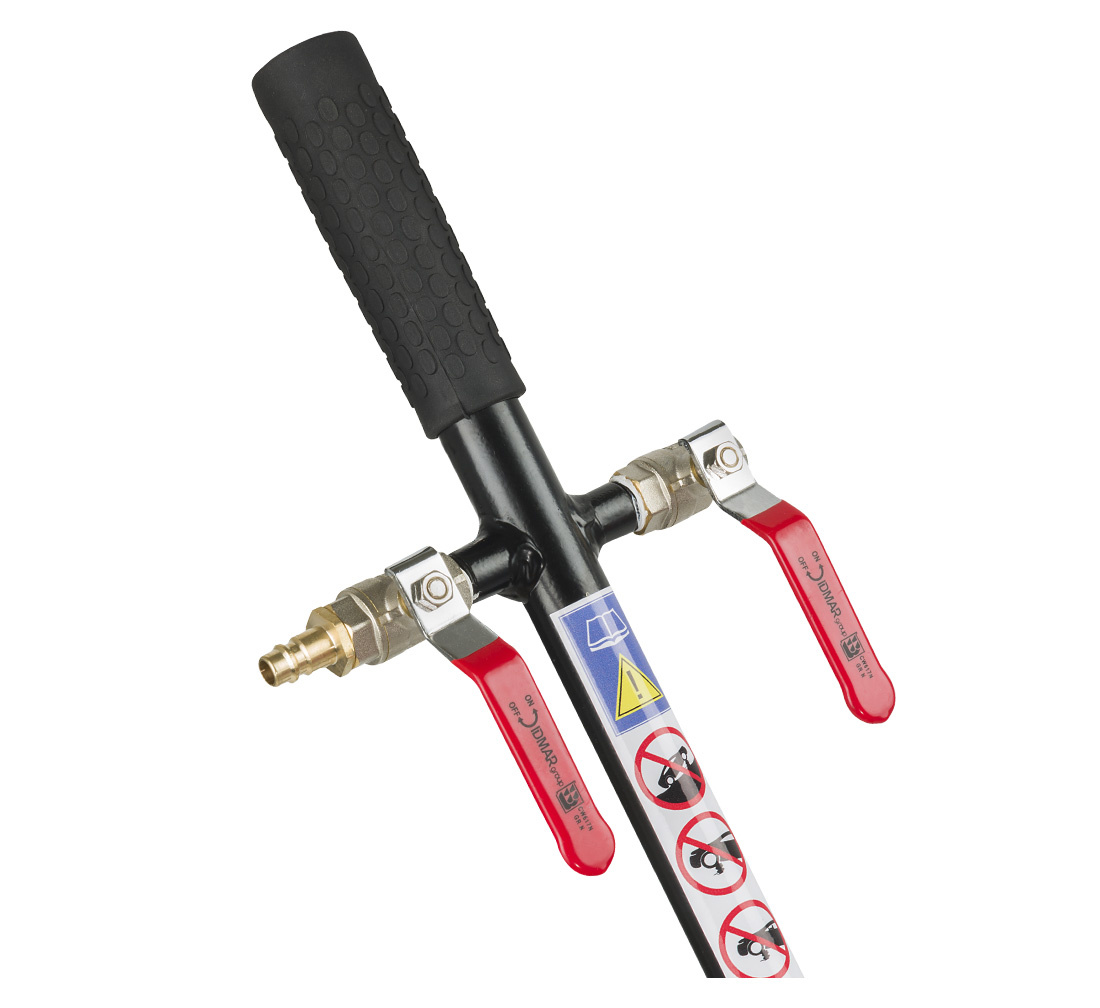

The rubber part on the top of the lift saves the chassis of the car that is being risen and protects its falling off while lifting. There are two valves: inlet and outlet, which provide for perfect tightness of the whole structure, even if you disconnect the hose with compressed air. The safety valve prevents the development of too high pressure, so there is no risk of a cushion blowing. And please note that all air jacks by REDATS have the CE declaration of conformity.

Easy work

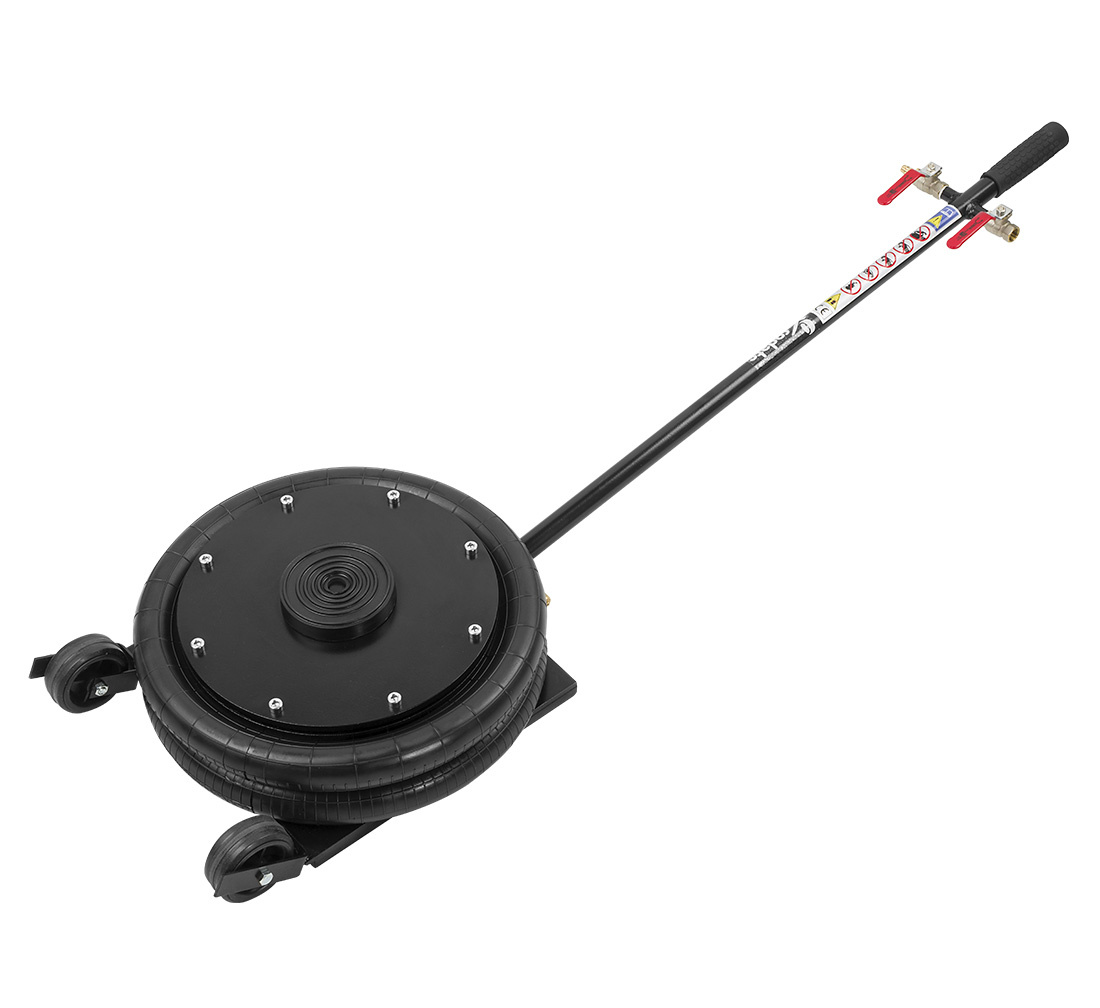

The height (at rest) means an easy manouvering of the lift right under the car. And the rise lift means an easier access while repairing suspension or exchanging tyres.
